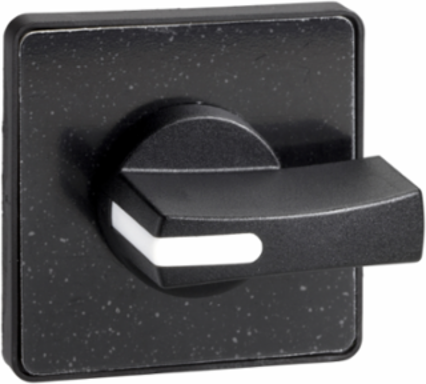

Schneider Electric KAG3H Harmony K Cam Switch Operating Head, 45 x 45 mm, IP40, Black Handle
- MPN: KAG3H
- PPN: SCH-KAG3H
CAD
$28.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony KAG3H is a black operating head 45 x 45mm with black handle, blank for engraving. It is part of the range Harmony K diameter 16-22mm rotary cam switches.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, Mexico
Physical Attributes
- Cad Overall Depth
- 34 mm
- Cad Overall Width
- 45 mm
Cad Overall Height45 mm
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI071103EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Cam Switch Head Type
- with front plate 45 x 45 mm
- Component Name
- KAG
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- No
- Shock Resistance
- 30 gn IEC 68-2-27
- Type Of Operator
- Black handle 35 mm
- Pep Code
- ENVPEP071103EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Compatibility CodeKAG
Mechanical Durability1000000 cycles
Product Or Component Typecam switch operating head
Range Of ProductHarmony Series K
Rotary Handle Padlockingwithout
Sustainable PackagingNo
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Length Total35 mm
Package Weight(Lbs)15.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Ip Degree Of Protection
- IP40 conforming to IEC 529, IP40 conforming to NF C 20-010
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP071103EN
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- front mounting bodies 12 and 20 A multifixing
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI071103EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP071103EN
General Attributes
- Product Or Component Type
- cam switch operating head
Range Of ProductHarmony Series K
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with mat black
