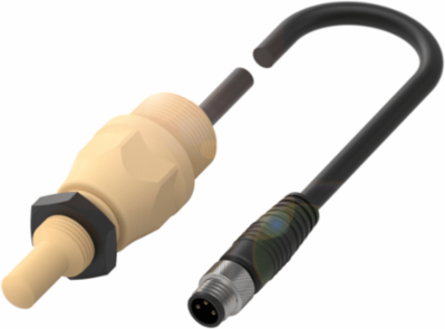

Balluff BCS S44KK01-POCFAG-EP00,3-GS49 Capacitive Level Sensor Ø 12 x 62.5 mm, PEEK, IP67, Smart Level 15
- MPN: BCS S44KK01-POCFAG-EP00,3-GS49
- PPN: BAL-BCS0106
CAD
$358.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10-30 VDC
- Ambient Temperature Range
- -5 to 105 °C
- Dimension
- Ø 12 x 62.5 mm
- Housing Material
- PEEK
- Jacket Material
- PUR
- Installation Type
- Non-flush
- Protection Rating
- IP67, sensing surface IP68 10 bar
- Additional Features
- Electrically conductive media, Foam and residue compensation
- Sensitivity
- Media-dependent, adjustable
Switching Frequency5 Hz
Thread SizeM12x1
ConnectionCable with connector, M8x1 Male, 3-pin, 0.3 m, PUR
Material Sensing SurfacePEEK
Cover MaterialPA
Output TypePNP Normally Closed (NC)
Approval/ConformityCE, WEEE
FunctionSmart Level 15
