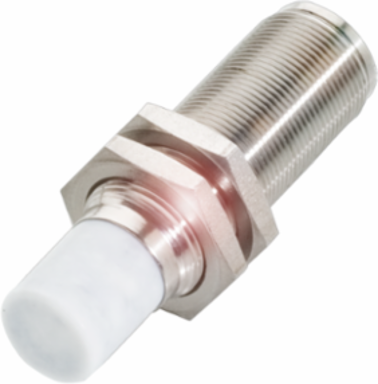

Balluff BCS M18T4H1-XXS10H-SZ02-T08 Capacitive Sensor Ø 18 x 65 mm, IP66, M18x1 Thread
- MPN: BCS M18T4H1-XXS10H-SZ02-T08
- PPN: BAL-BCS00A1
CAD
$304.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for precision and reliability, the capacitive sensor from Balluff features a compact Ø18 x 65 mm design, making it ideal for various industrial applications. With an adjustable sensitivity setting and a robust stainless steel housing, this sensor is built to withstand harsh environments, boasting an IP66 rating for dust and water resistance. Operating within a range of 1 to 10 mm and capable of withstanding extreme temperatures from -180 to 250 °C, it ensures consistent performance in challenging conditions. The non-flush installation and specialized connector further enhance its versatility, making it a dependable choice for your sensing needs.
Documentation & Downloads
Specifications
Additional
- Sensing Distance
- 1 to 10 mm
- Length
- 65 mm
- Thread Size
- M18x1
- Material Sensing Surface
- PTFE
- Operating Temperature Range
- -180 to 250 °C
- Connection
- Connector, Special connector-Special connector
- Approval/Conformity
- CE; WEEE
- Series
- M18
Switching Frequency50 Hz
Diameter18 mm
Housing Material1.4301 stainless steel
IP RatingIP66
Installation TypeNon-flush
InterfaceSpecial interface
Country of OriginGermany
Sensitivityadjustable on base unit
