Balluff

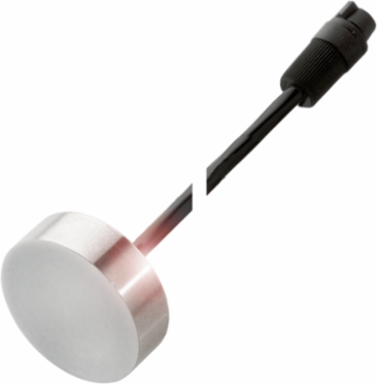

Balluff BCS D30T409-XXS15C-EP02-GZ01-002 Capacitive Sensor Head, Ø 30 x 10 mm, IP66, -30-80 °C

Capacitive Sensor Head, Ø 30 x 10 mm, IP66, -30-80 °C
  • MPN: BCS D30T409-XXS15C-EP02-GZ01-002
  • PPN: BAL-BCS001K

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$251.97/ EA

Description

Our capacitive sensor heads are used when a sensor with integrated electronics would not function optimally due to the surroundings. For example at extreme temperatures or under the maximum pressure. Their compact design also makes them suitable for use in tight spaces. The sensor heads are operated via a separate amplifier.

Specifications

Specifications

Dimension
Ø 30 x 10 mm
Installation
for flush mounting
Interface
Special interface
Sensitivity
adjustable on base unit
Material sensing surface
PTFE
Approval/Conformity
CE, cULus, WEEE
SeriesD30
ConnectionCable with connector, Special connector-Special connector, 2.00 m, PUR
Range1-15 mm
Housing materialStainless steel (1.4301)
Ambient temperature-30-80 °C
IP ratingIP66
