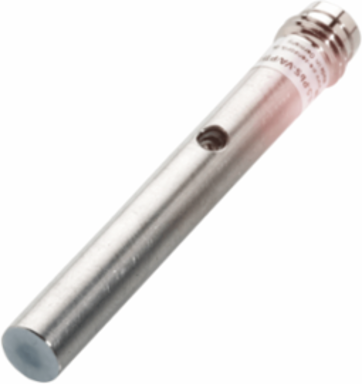

Balluff BCS G06T4D2-POM15C-S49G Capacitive Proximity Sensor Ø 6.5 x 54 mm, IP65, 11-30 VDC
- MPN: BCS G06T4D2-POM15C-S49G
- PPN: BAL-BCS001T
CAD
$464.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 11-30 VDC
- Sensitivity
- Switching distance adjustable
- Switching Frequency
- 100 Hz
- No-load Current
- 10 mA
- Rated Operating Voltage
- 24 V DC
- Hysteresis Max
- 15 % of Sr
- Temperature Drift Max
- 15 % of Sr
- Installation
- Flush mounting
- Material
- Stainless steel (1.4301), PTFE
- Ambient Temperature
- -10-70 5C
- Basic Standard
- IEC 60947-5-2
Switching OutputPNP Normally closed (NC)
Range0.1-1.5 mm
Voltage Drop Static Max2 V
Rated Operating Current50 mA
Rated Operating Distance1.5 mm
Repeat Accuracy Max2 % of Sr
Dimension5 6.5 x 54 mm
ConnectionConnector, M8x1-Male, 3-pin
IP RatingIP65
Approval/ConformityCE, cULus, WEEE
SeriesG06
