Balluff

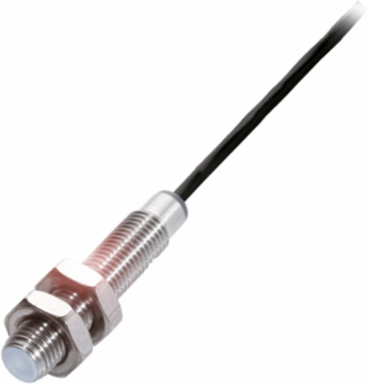

Balluff BCS M08T4E1-NSM15C-EP02 Capacitive Sensor Ø 8 x 42 mm, IP65, 11-30 VDC, Adjustable Sensitivity

Capacitive Sensor Ø 8 x 42 mm, IP65, 11-30 VDC, Adjustable Sensitivity
  • MPN: BCS M08T4E1-NSM15C-EP02
  • PPN: BAL-BCS0028

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$457.87/ EA

Description

Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).

Specifications

Specifications

Dimension
Ø 8 x 42 mm
Thread (A)
M8x1
Connection
Cable, 2.00 m, PUR
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PTFE
Operating voltage Ub
11-30 VDC
IP rating
IP65
SeriesM08
Installationfor flush mounting
Switching outputNPN Normally open (NO)
Range0.1-1.5 mm
Housing materialStainless steel (1.4301)
Ambient temperature-10-70 °C
Approval/ConformityCE, cULus, WEEE

Downloads
