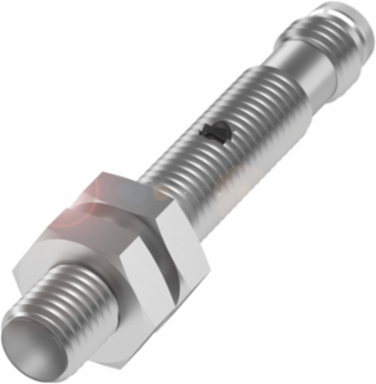

Balluff BCS M08T4E2-PSM15C-S49G Capacitive Sensor 8 x 54 mm, 0.1-1.5 mm Range, IP65 Rating
- MPN: BCS M08T4E2-PSM15C-S49G
- PPN: BAL-BCS002A
CAD
$379.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Range | 0.1-1.5 mm |
|---|---|
| Switching Frequency | 100 Hz |
| Dimension | 8 x 54 mm |
| Housing Material | Stainless steel (1.4301) |
| IP Rating | IP65 |
| Approval/Conformity | CE, cULus, WEEE |
| Sensitivity | Switching distance adjustable |
| Installation | for flush mounting |
| Operating Voltage | 11-30 VDC |
|---|---|
| Switching Output | PNP Normally open (NO) |
| Thread Size | M8x1 |
| Material Sensing Surface | PTFE |
| Ambient Temperature | -10 to 70 C |
| Connection | Connector, M8x1-Male, 3-pin |
| Series | M08 |
