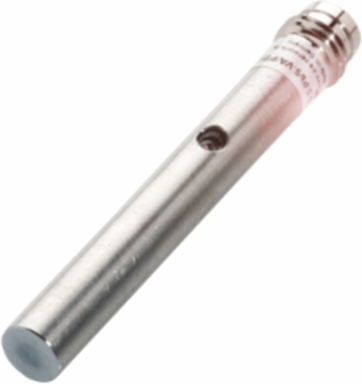

Balluff BCS G06T4D2-PSM15C-S49G Capacitive Sensor 6.5 x 54 mm, IP65, 0.1-1.5 mm Range
- MPN: BCS G06T4D2-PSM15C-S49G
- PPN: BAL-BCS001R
CAD
$464.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 11-30 VDC |
|---|---|
| Switching Frequency | 100 Hz |
| Dimension | d8 6.5 x 54 mm |
| Housing Material | Stainless steel (1.4301) |
| IP Rating | IP65 |
| Approval/Conformity | CE, cULus, WEEE |
| Sensitivity | Switching distance adjustable |
| Range | 0.1-1.5 mm |
|---|---|
| Switching Output | PNP Normally open (NO) |
| Connection | Connector, M8x1-Male, 3-pin |
| Material Sensing Surface | PTFE |
| Ambient Temperature | -10 to 70 b0C |
| Series | G06 |
| Installation | for flush mounting |
