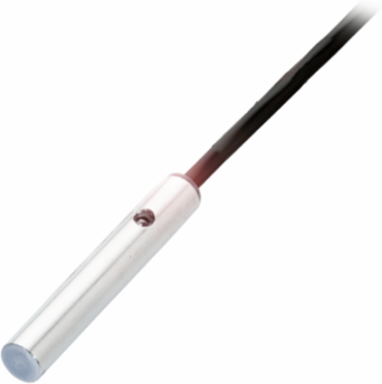

Balluff BCS G06T4E1-PSM15C-EP02 Capacitive Sensor, Ø 6.5 x 42 mm, IP65, 100 Hz, Stainless Steel
- MPN: BCS G06T4E1-PSM15C-EP02
- PPN: BAL-BCS001L
CAD
$471.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 11-30 VDC
- Switching Output
- PNP Normally open (NO)
- Dimension
- Ø 6.5 x 42 mm
- Connection
- Cable, 2.00 m, PUR
- Material Sensing Surface
- PTFE
- Approval/Conformity
- CE, cULus, WEEE
- Sensitivity
- Switching distance adjustable
Switching Frequency100 Hz
Range0.1-1.5 mm
InstallationFlush mounting
Housing MaterialStainless steel (1.4301)
Ambient Temperature-10 to 70 °C
SeriesG06
