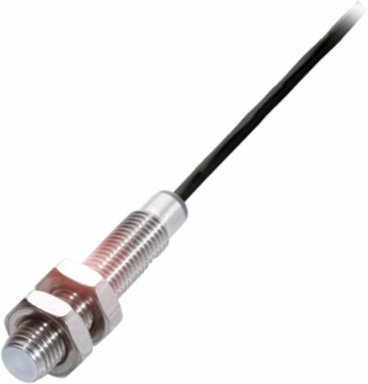

Balluff BCS M08T4E1-PSM15C-EP02 Capacitive Sensor, 8 x 42 mm, 0.1-1.5 mm Range, IP65
- MPN: BCS M08T4E1-PSM15C-EP02
- PPN: BAL-BCS0026
CAD
$471.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 11-30 V DC |
|---|---|
| Switching Frequency | 100 Hz |
| Dimension | 8 x 42 mm |
| Installation | Flush Mounting |
| Ambient Temperature | -10 to 70 C |
| Material Housing | Stainless Steel (1.4301) |
| Series | M08 |
| Switching Output | PNP Normally Open (NO) |
|---|---|
| Measuring Range | 0.1-1.5 mm |
| Thread Size | M8x1 |
| Connection | Cable, 2.00 m, PUR |
| Material Sensing Surface | PTFE |
| Approval/Conformity | CE, cULus, WEEE |
