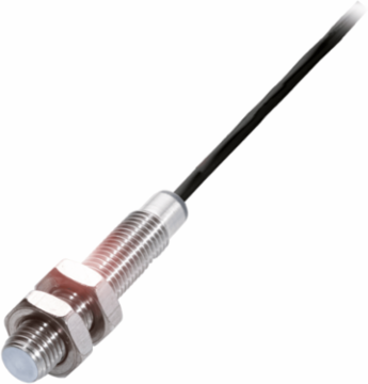

Balluff BCS M08T4E1-POM15C-EP02 Capacitive Sensor, 8 x 42 mm, 0.1-1.5 mm Range, IP65
- MPN: BCS M08T4E1-POM15C-EP02
- PPN: BAL-BCS0027
CAD
$471.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Switching frequency | 100 Hz |
|---|---|
| Operating voltage | 11-30 VDC |
| Ambient temperature range | -10-70 C |
| Thread size | M8x1 |
| Material sensing surface | PTFE |
| Material jacket | PUR |
| Rated operating current | 50 mA |
| Voltage drop max. | 2 V |
| Cable length | 2 m |
| Number of conductors | 3 |
| Hysteresis max. | 15 % |
| Temperature drift max. | 15 % |
| Sensitivity | Switching distance adjustable |
| Approval/Conformity | CE, cULus, WEEE |
| Tightening torque | 6 Nm |
| Measuring range | 0.1-1.5 mm |
|---|---|
| Switching output | PNP Normally closed (NC) |
| Dimension | 8 x 42 mm |
| Housing material | Stainless steel (1.4301) |
| Connection | Cable, 2.00 m, PUR |
| Material cover | POM |
| No-load current | 10 mA |
| Rated operating voltage | 24 VDC |
| Conductor cross-section | 0.14 mm2 |
| Contamination scale | 1 |
| Repeat accuracy max. | 2 % |
| Installation | for flush mounting |
| Series | M08 |
| IP rating | IP65 |
