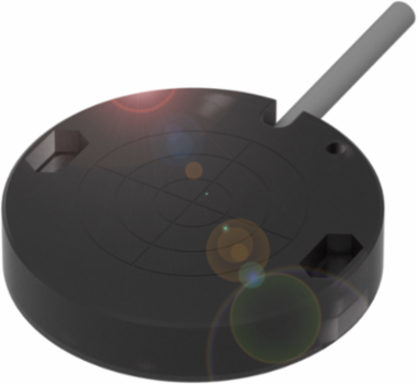

Balluff BCS D50OO02-YPC25C-EV02 Capacitive Sensor 50mm x 10mm, IP67, PNP/NPN, 2-25mm Range
Balluff BCS D50OO02-YPC25C-EV02 Capacitive Sensor 50mm x 10mm, IP67, PNP/NPN, 2-25mm Range
- MPN: BCS D50OO02-YPC25C-EV02
- PPN: BAL-BCS003K
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$189.07/ EA
Description
The Balluff capacitive sensor is a versatile and robust solution designed for precise detection in various industrial applications. With a compact Ø 50 x 10 mm profile and an IP67 rating, this sensor is well-suited for flush mounting in environments where dust and moisture are concerns. It features a programmable PNP/NPN output, allowing for both normally open and normally closed configurations, and operates within a voltage range of 10 to 30 VDC, making it adaptable to different systems. This sensor is engineered for reliability, with an adjustable sensitivity range of 2 to 25 mm and a switching frequency of up to 50 Hz, ensuring optimal performance even in challenging conditions.
Specifications
Specifications
- Country of Origin
- Germany
- Series
- D50
- Connection
- Cable, 2.00 m, PVC
- Switching frequency
- 50 Hz
- Sensitivity
- Switching distance adjustable
- Material sensing surface
- POM
- Operating voltage Ub
- 10...30 VDC
- IP rating per IEC 60529
- IP67
DimensionØ 50 x 10 mm
Installationfor flush mounting
Switching outputPNP/NPN NO/NC programmable
Range2...25 mm
Housing materialPOM
Ambient temperature-30...60 °C
Approval/ConformityCE; cULus; WEEE
