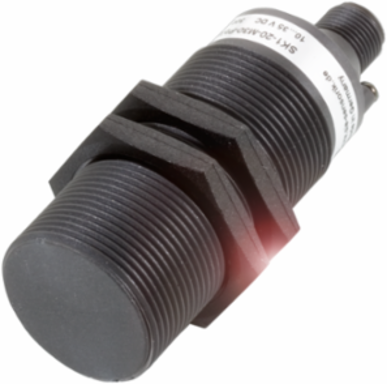

Balluff BCS M30BBM2-PPM20C-S04G Capacitive sensors for object detection - BCS004M

Capacitive sensors for object detection - BCS004M
  • MPN: BCS M30BBM2-PPM20C-S04G
  • PPN: BAL-BCS004M

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$227.11/ EA

Description

Capacitive sensors for object detection - BCS004M

Specifications

Specifications

Country of Origin
Germany
Series
M30
Installation
for flush mounting
Switching output
PNP NO/NC programmable
Range
1...20 mm
Housing material
PBT
Ambient temperature
-30...70 °C
Approval/Conformity
CE; cULus; WEEE
DimensionØ 30 x 87 mm
Thread (A)M30x1.5
ConnectionConnector, M12x1-Male, 4-pin
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePBT
Operating voltage Ub10...35 VDC
IP rating per IEC 60529IP66

Downloads
