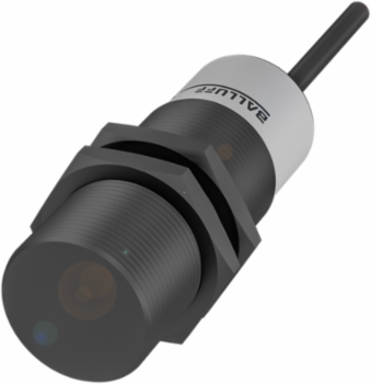

Balluff BCS M30KN2-UST15G-AV02 Capacitive sensors with special properties - BCS000W

Capacitive sensors with special properties - BCS000W
  • MPN: BCS M30KN2-UST15G-AV02
  • PPN: BAL-BCS000W

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$373.61/ EA

Description

Capacitive sensors with special properties - BCS000W

Specifications

Specifications

Country of Origin
Germany
Series
M30
Connection
Cable, 2.00 m, PVC
Switching frequency
40 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PBT
Operating voltage Ub
20...250 VDC/20...250 VAC
IP rating per IEC 60529
IP65
DimensionØ 30 x 81 mm
Installationnon-flush
Switching outputNormally open (NO)
Range0...12.1 mm
Housing materialPBT
Ambient temperature-25...70 °C
Approval/ConformityCE; WEEE; UKCA; cULus
