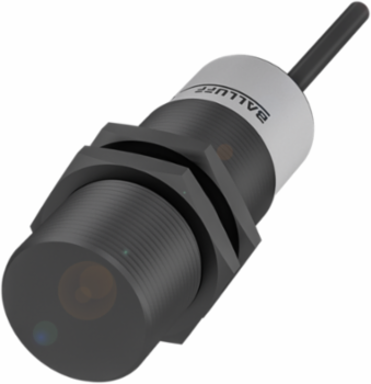

Balluff BCS M30KN2-UOT15G-AV02 Capacitive Sensor M30 Non-Flush Ø 30 x 81 mm 0-12.1 mm Range
- MPN: BCS M30KN2-UOT15G-AV02
- PPN: BAL-BCS000U
CAD
$373.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Capacitive Sensor M30 Non-Flush Ø 30 x 81 mm 0-12.1 mm Range
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 20...250 VDC/20...250 VAC
- Switching Frequency
- 40 Hz
- Diameter
- 30 mm
- Connection
- Cable, 2.00 m, PVC
- Material Sensing Surface
- PBT
- Sensitivity
- Switching distance adjustable
- IP Rating
- IP65
- Series
- M30
Sensing Range0...12.1 mm
Length81 mm
Mounting StyleNon-flush
Housing MaterialPBT
Switching OutputNormally closed (NC)
Ambient Temperature-25...70 0C
Approval/ConformityCE; WEEE; UKCA; cULus
Country of OriginGermany
