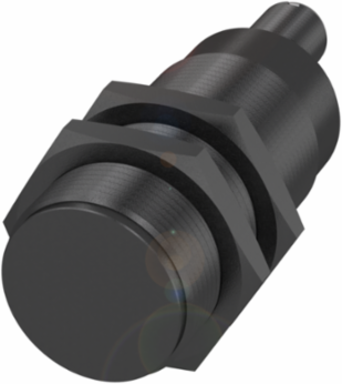

Balluff BCS M30BBI2-PSC15D-S04K Capacitive Sensor, M30 Size, IP67, 10-30 VDC, 2...15 mm Range
Balluff BCS M30BBI2-PSC15D-S04K Capacitive Sensor, M30 Size, IP67, 10-30 VDC, 2...15 mm Range
- MPN: BCS M30BBI2-PSC15D-S04K
- PPN: BAL-BCS00NA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$159.72/ EA
Description
The Balluff M30 capacitive sensor is engineered for precision and reliability in various industrial applications. With an adjustable sensing range of 2 to 15 mm and a robust PBT housing, this sensor is designed to withstand harsh environments, boasting an IP67 rating that ensures protection against dust and water ingress. Operating within a voltage range of 10 to 30 VDC, it features a PNP normally open switching output and can handle ambient temperatures from -25 to 85 °C, making it suitable for diverse operational settings. The sensor's flush mounting installation and M12x1 male connector facilitate easy integration into existing systems, ensuring optimal performance in your automation processes.
Specifications
Specifications
- Country of Origin
- Hungary
- Series
- M30
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Range
- 2...15 mm
- Housing material
- PBT
- Ambient temperature
- -25...85 °C
- Approval/Conformity
- CE; UKCA; cULus; WEEE
DimensionØ 30 x 79 mm
Thread (A)M30x1.5
ConnectionConnector, M12x1-Male, 3-pin
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePBT
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
