Balluff

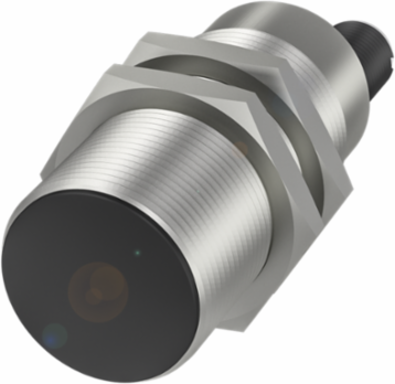

Balluff BCS M30B4I2-PSC15D-S04K Capacitive sensors for object detection - BCS00MR

Capacitive sensors for object detection - BCS00MR
  • MPN: BCS M30B4I2-PSC15D-S04K
  • PPN: BAL-BCS00MR

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$217.69/ EA

Description

Capacitive sensors for object detection - BCS00MR

Specifications

Specifications

Country of Origin
Hungary
Series
M30
Installation
for flush mounting
Switching output
PNP Normally open (NO)
Range
2...15 mm
Housing material
1.4305 stainless steel; PBT
Ambient temperature
-25...85 °C
Approval/Conformity
CE; UKCA; cULus; WEEE
DimensionØ 30 x 79 mm
Thread (A)M30x1.5
ConnectionConnector, M12x1-Male, 3-pin
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePBT
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
