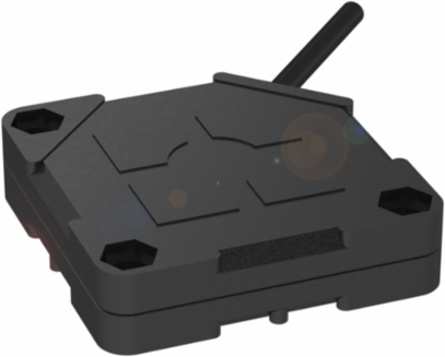

Balluff BCS Q40BBAA-GPC20C-EP02 Capacitive Sensor, Q40 Series, 40 x 40 x 10 mm, IP67, PNP/NPN
Balluff BCS Q40BBAA-GPC20C-EP02 Capacitive Sensor, Q40 Series, 40 x 40 x 10 mm, IP67, PNP/NPN
- MPN: BCS Q40BBAA-GPC20C-EP02
- PPN: BAL-BCS00TR
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$134.23/ EA
Description
Designed for precision and reliability, the capacitive sensors for object detection by Balluff offer a robust solution for various automation applications. With a compact dimension of 40 x 40 x 10 mm and a programmable switching output (PNP/NPN NO/NC), these sensors can be seamlessly integrated into your systems. They feature an adjustable sensitivity range of 1 to 20 mm, ensuring optimal performance in detecting a variety of materials, all while maintaining an IP67 rating for durability in challenging environments. The sensor operates within a wide voltage range of 10 to 30 VDC and is suitable for ambient temperatures between -5 to 85 °C, making it a versatile choice for industrial settings.
Specifications
Specifications
- Country of Origin
- Hungary
- Series
- Q40
- Connection
- Cable, 2.00 m, PUR
- Switching frequency
- 100 Hz
- Sensitivity
- Switching distance adjustable
- Material sensing surface
- PBT
- Operating voltage Ub
- 10...30 VDC
- IP rating per IEC 60529
- IP67
Dimension40 x 40 x 10 mm
Installationfor flush mounting
Switching outputPNP/NPN NO/NC programmable
Range1...20 mm
Housing materialPBT
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
