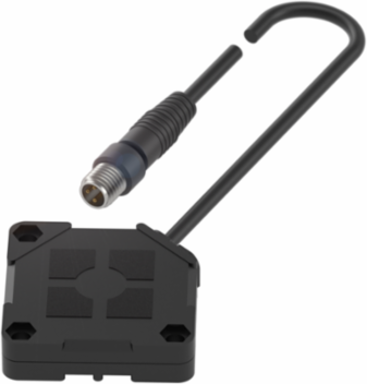

Balluff BCS Q40BBAA-PSC20C-EP00,3-GS49 Capacitive sensors for object detection - BCS00U6

Capacitive sensors for object detection - BCS00U6
  • MPN: BCS Q40BBAA-PSC20C-EP00,3-GS49
  • PPN: BAL-BCS00U6

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$138.25/ EA

Description

Capacitive sensors for object detection - BCS00U6

Specifications

Specifications

Country of Origin
Hungary
Series
Q40
Connection
Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
Switching frequency
100 Hz
Sensitivity
Switching distance adjustable
Material sensing surface
PBT
Operating voltage Ub
10...30 VDC
IP rating per IEC 60529
IP67
Dimension40 x 40 x 10 mm
Installationfor flush mounting
Switching outputPNP Normally open (NO)
Range1...20 mm
Housing materialPBT
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
