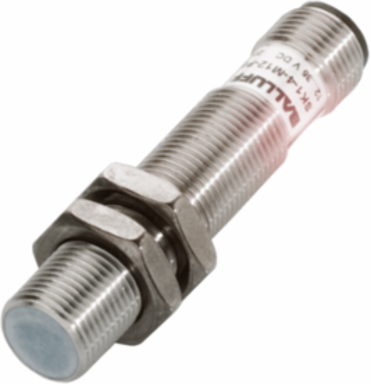

Balluff BCS M12T4D2-PSM40C-S04G Capacitive Sensor, 12 x 60 mm, Range 1-4 mm, PNP NO Output
- MPN: BCS M12T4D2-PSM40C-S04G
- PPN: BAL-BCS0037
CAD
$318.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Capacitive sensors for object detection feature a straight-line electrical field. They detect both solid bodies, such as wafers, PCBs, cartons, paper stacks, bottles, plastic blocks and plates, and liquids through container walls or glass or plastic tubes (thickness max. 4 mm).
Documentation & Downloads
Specifications
Additional
| Operating Voltage | 12-35 VDC |
|---|---|
| Measuring Range | 1-4 mm |
| No-load Current | 12 mA |
| Switching Output | PNP Normally open (NO) |
| Ambient Temperature Range | -30 to 70 B0C |
| Repeat Accuracy Max | 2 % |
| Length | 60 mm |
| Thread Size | M12x1 |
| Installation | Flush mounting |
| Sensing Surface Material | PTFE |
| Protection | Polarity reversal protected, Device mix-up protected, Short-circuit protected |
| Compliance | CE, cULus, WEEE |
| Series | M12 |
| Switching Frequency | 100 Hz |
|---|---|
| Rated Operating Current | 200 mA |
| Voltage Drop Max | 1.5 V |
| Sensitivity | Switching distance adjustable |
| Hysteresis Max | 15 % |
| Temperature Drift Max | 20 % |
| Diameter | 12 mm |
| Connection | Connector, M12x1-Male, 4-pin, A-coded |
| Housing Material | Stainless steel (1.4301) |
| Cover Material | PA |
| Ingress Protection | IP65 |
| Basic Standard | IEC 60947-5-2 |
