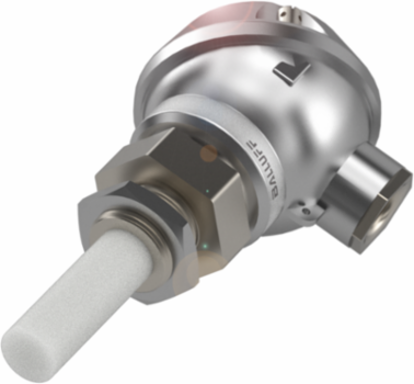

Balluff BCS S01T401-PSCFNG-KM16-T02 Capacitive Sensor, 54.8 x 48.5 x 106 mm, IP67, M18x1 Thread

Capacitive Sensor, 54.8 x 48.5 x 106 mm, IP67, M18x1 Thread
  • MPN: BCS S01T401-PSCFNG-KM16-T02
  • PPN: BAL-BCS006H

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$417.98/ EA

Description

Designed for versatility and reliability, the Balluff capacitive sensor excels in various industrial applications. With a robust non-flush installation and an IP67 rating, it is well-suited for environments where moisture and dust are a concern. This sensor features a PTFE sensing surface, ensuring compatibility with a wide range of media, while its adjustable sensitivity allows for precise operation tailored to specific needs. Operating within a temperature range of -30 to 125 °C and capable of handling pressures up to 10 bar, this device is engineered for durability and high performance in demanding conditions. The stainless steel housing further enhances its longevity, making it an ideal choice for those seeking a dependable sensing solution.

Specifications

Specifications

Country of Origin
Germany
Series
S01
Installation
non-flush
Switching output
PNP Normally open (NO)
Sensitivity
media-dependent, adjustable
Material sensing surface
PTFE
Pressure rating max.
10 bar
Approval/Conformity
CE; WEEE
Dimension54.8 x 48.5 x 106 mm
Thread (A)M18x1
ConnectionClamping terminal
Switching frequency5 Hz
Housing material1.4305 stainless steel, Connection thread
Ambient temperature-30...125 °C
Operating voltage Ub10...35 VDC
IP rating per IEC 60529IP67

Downloads
