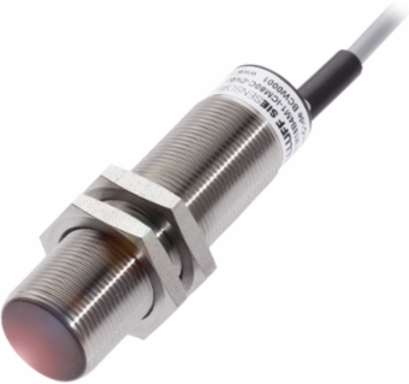

Balluff BCW M18B4M1-ICM80C-DV02 Capacitive Sensor, M18, 0-8 mm Range, 12-35 VDC, Ø 18 x 65 mm

Capacitive Sensor, M18, 0-8 mm Range, 12-35 VDC, Ø 18 x 65 mm
  • MPN: BCW M18B4M1-ICM80C-DV02
  • PPN: BAL-BCW0001

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$935.28/ EA

Description

The Balluff BCW M18B4M1-ICM80C-DV02 capacitive sensor is engineered for precision and reliability in various industrial applications. With a compact design measuring Ø 18 x 65 mm, it features a sensing range of 0 to 8 mm and operates within a voltage range of 12 to 35 VDC, making it versatile for numerous setups. Its robust stainless steel housing and IP67 rating ensure durability and protection against dust and water, while the flush mounting capability allows for seamless integration into your systems. This sensor also boasts a high switching frequency of 100 Hz, making it suitable for fast-paced environments where accurate detection is crucial.

Specifications

Specifications

Country of Origin
Germany
Series
M18
Installation
for flush mounting
Analog output
Analog, current Current falling on approach
Range
0...8 mm
Material sensing surface
PBT
Operating voltage Ub
12...35 VDC
IP rating per IEC 60529
IP67
DimensionØ 18 x 65 mm
Thread (A)M18x1
ConnectionCable, 2.00 m, PVC
Switching frequency100 Hz
Housing material1.4301 stainless steel
Ambient temperature10...55 °C
Approval/ConformityCE; cULus; WEEE
