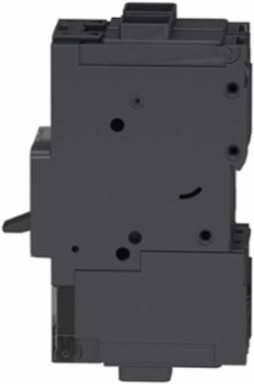

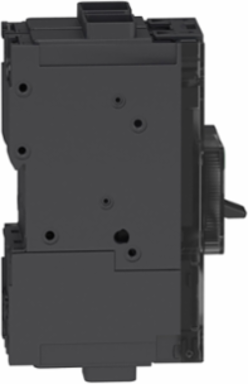

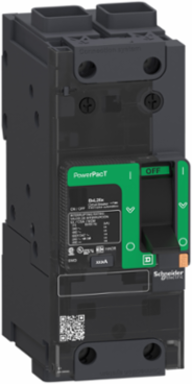

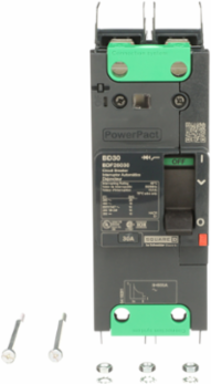

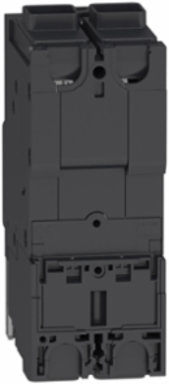

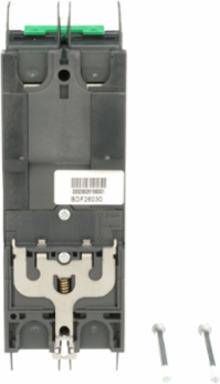

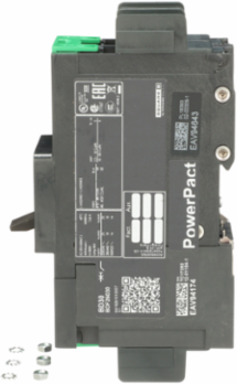

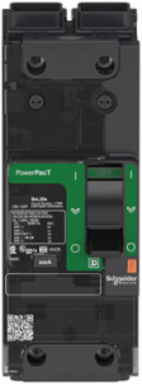

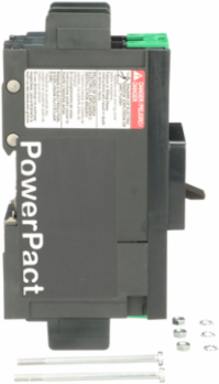

Schneider Electric BDF26030 PowerPact B Circuit Breaker, 30A, 2 Pole, 14kA, 600Y/347VAC
- MPN: BDF26030
- PPN: SCH-BDF26030
CAD
$1530.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This 30A, 2-pole circuit breaker from Schneider Electric's PowerPact B series is engineered for robust power distribution applications. With a short-circuit interruption rating of 14kA, it ensures dependable protection for electrical systems operating at 600Y/347VAC. Designed to meet the demands of modern electrical installations, this molded case circuit breaker delivers reliable performance and superior durability, making it an essential component for enhancing safety and reliability in power distribution setups.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Continuous Current Rating
- 80%
- Mounting Mode
- Clip-on 35 mm symmetrical DIN rail, By screws plate
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Connection Pitch
- 27 mm (1.06 in)
- Height
- 137 mm (5.39 in)
- Depth
- 80 mm (3.15 in)
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Storage Temperature Range
- -50 to 85 °C (-58 to 185 °F)
- Compliance
- UL, IEC, CCC, EAC, CSA, NOM
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
- Color
- Gray RAL 7016
Breaking Capacity25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC UL 489
Rated Insulation Voltage800 V IEC 60947-2
Number of Poles2P
Electrical ConnectionTerminal nut, ON and OFF end
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
AWG GaugeAWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
Width54 mm (2.13 in)
Net Weight0.669 kg (1.47 lb)
IK Degree of ProtectionIK07 IEC 62262
Operating Temperature Range-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6562 ft) without derating, 5000 m with derating
StandardsUL 489, IEC 60947-2, CSA C22.2 No 5, GB 14048.2, NEMA AB1, EN/IEC 60947-5-1, NMX J-266
Mercury FreeYes
Halogen ContentHalogen free product
