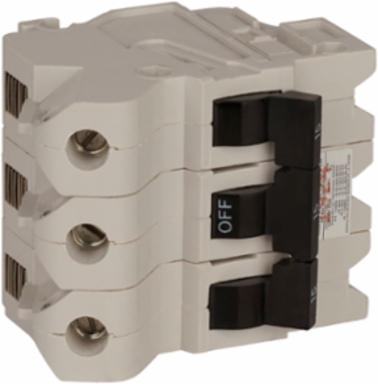

Federal Pioneer NB3P50 Stab-Lok Circuit Breaker 50A 3 Pole 240VAC 10kA Bolt-On Mount
- MPN: NB3P50
- UPC: 047569384936
- PPN: SCH-NB3P50
CAD
$655.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a three pole 50A, 240VAC moulded case breaker with bolt on mounting. This circuit breaker meets CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
Product Or Component Typeminiature circuit-breaker
Complementary
- Mounting Mode
- bolt-on
- Poles Description
- 3P
- [In] Rated Current
- 50 A
- [Ue] Rated Operational Voltage
- 120/240 V AC
Breaking Capacity10 kA
Electrical Connectionscrew connector
Awg GaugeAWG 14...AWG 1/0 aluminum/copper
Environment
- Product Certifications
- CSA
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
