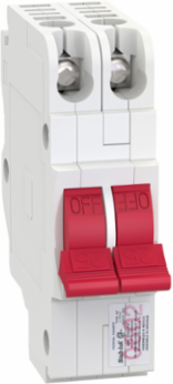

Federal Pioneer NC0225 Stab-Lok Circuit Breaker 25A, 2 Pole, 120/240V AC, 10kA, Plug-In Mount
- MPN: NC0225
- UPC: 047569388859
- PPN: SCH-NC0225
CAD
$67.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a two pole 25A, 120/240VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- Featuring a dedicated 2-pole configuration delivering a 25-amp continuous current rating at 120/240V AC, this unit provides the robust power distribution required for larger electrical demands. It provides the exact amperage capacity required to keep dedicated household or light commercial circuits running smoothly without nuisance tripping.
- Built with advanced thermal-magnetic trip protection, the unit instantly detects hazardous thermal overloads and short circuits up to a 10kA interrupting capacity (AIC). The rugged arc-resistant molded case isolates internal faults, minimizing risk and ensuring your property and equipment remain fully protected under extreme conditions.
- This breaker utilizes a secure plug-in mounting system that slips effortlessly onto the panel busbar, dramatically speeding up installation time. The heavy-duty screw connectors are engineered to handle a broad range of wire sizes from AWG 14 down to AWG 6 copper conductor, guaranteeing a low-resistance, tight connection that eliminates arcing.
- Fully tested and CSA certified, this premium Schneider Electric breaker satisfies strict Canadian electrical safety codes and construction standards. Choosing this certified component ensures your home or job site passes inspections effortlessly while avoiding the structural liabilities associated with unapproved aftermarket alternatives.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
- [In] Rated Current
- 25 A
- Breaking Capacity
- 10 kA
Poles Description2P
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Mounting Mode
- plug-in
- Awg Gauge
- AWG 14...AWG 6 copper
Electrical Connectionscrew connector
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
