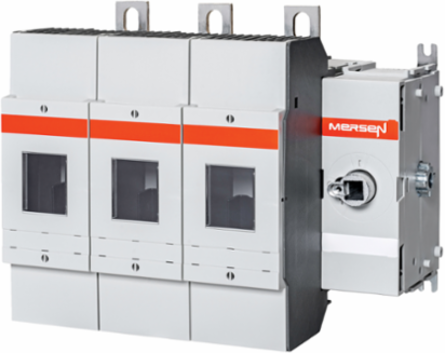

Mersen M30CC30S Class CC Fused Disconnect Switch 600V 30A 3-Pole Double Break
Mersen M30CC30S Class CC Fused Disconnect Switch 600V 30A 3-Pole Double Break
- MPN: M30CC30S
- PPN: FER-M30CC30S
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$538.60/ EA
Description
Mersen’s fusible disconnect switches are listed to UL 98 and bear the CE mark conforming to IEC 60947-3. They are “service entrance” devices capable of fully rated load-break and load-make. While longterm safety, reliability, and functionality are always paramount in the design of our products, these switches are also engineered to have the smallest footprint. The modular design allows placement of the handle anywhere amongst the poles. The fuse doors cannot open when the switch is in the “ON” position, and all switches are double-break, which isolates both fuse clips from voltage during fuse replacement. The switches’ “Test” position allows actuation of the auxiliary contacts without main power. Power taps enable energizing a CPT or surge device without the need for a separate terminal block. A wide range of ergonomic handles and accessories is available.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Ampere Rating
- 30 A
- AC or DC
- AC/DC
- Fuse Type/Class
- Class CC
- Number of Poles
- 3-Pole
- Connection/Terminal Type
- Box
- Max Fuse Rating
- 30 A
- Contact Type
- Double Break
- Installation Mounting
- Direct Screw Mount
- Length
- 4.45 in
- Weight
- 1.54 lb
Rated voltage DC UL250 V
ROHS CompliantYes
Short Circuit Current Rating (SCCR)200 kA
Short Circuit Rating (Standalone)200 kA
Wiring range#18-8
Torque Rating17 lb-in
Max Horsepower Rating/FLA3-Phase: 240V 7.5HP, 480V 15HP, 600V 20HP; 1-Phase 120V 2HP, 240V 3HP
Rated Insulation Voltage1000 V
Width5.18 in
Height4.11 in
