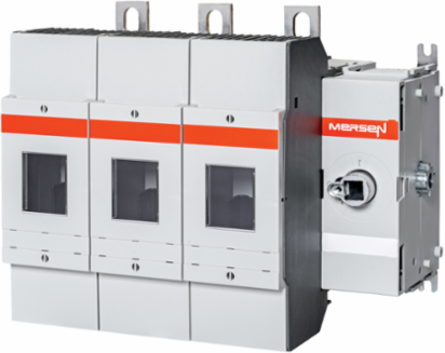

Mersen M200J30 Class J Fused Disconnect 3 Pole 200A 600V with Interlocked Fuse Doors
Mersen M200J30 Class J Fused Disconnect 3 Pole 200A 600V with Interlocked Fuse Doors
- MPN: M200J30
- PPN: FER-M200J30
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1018.87/ EA
Description
Mersen’s fusible disconnect switches are listed to UL 98 and bear the CE mark conforming to IEC 60947-3. They are “service entrance” devices capable of fully rated load-break and load-make. While longterm safety, reliability, and functionality are always paramount in the design of our products, these switches are also engineered to have the smallest footprint. The modular design allows placement of the handle anywhere amongst the poles. The fuse doors cannot open when the switch is in the “ON” position, and all switches are double-break, which isolates both fuse clips from voltage during fuse replacement. The switches’ “Test” position allows actuation of the auxiliary contacts without main power. Power taps enable energizing a CPT or surge device without the need for a separate terminal block. A wide range of ergonomic handles and accessories is available.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Ampere Rating
- 200 A
- AC or DC
- AC/DC
- Fuse Type/Class
- Class J
- Short Circuit Rating (Standalone)
- 200 kA
- Connection/Terminal Type
- Blade
- Max Horsepower Rating/FLA
- 3-Phase: 240V 60HP, 480V 125HP, 600V 150HP
- Rated Insulation Voltage
- 1000 V
- Width
- 7.15 in
- Height
- 2.95 in
Rated voltage DC UL250 V
ROHS CompliantYes
Short Circuit Current Rating (SCCR)200 kA
Short Circuit Rating (Class J)200 kA
Number of Poles3-Pole
Max Fuse Rating200 A
Contact TypeDouble Break
Installation MountingDirect Screw Mount
Length8.59 in
Weight6.6 lb
