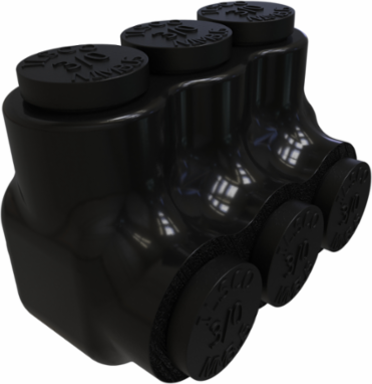

ILSCO PBTS-3-3/0 Nimbus Insulated Multi-Tap Connector, 3 Ports, Conductor Range 3/0-6, Tin Plated
- MPN: PBTS-3-3/0
- UPC: 783669079524
- PPN: ILC-PBTS-3-3/0
CAD
$83.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Nimbus Insulated Multi-Tap Connector, 3 Ports, Conductor Range 3/0-6, Tin Plated
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.863 in |
|---|---|
| Weight | 0.28 lbs |
| Length | 2.568 in | 65.2272 mm |
|---|---|
| Width | 1.726 in |
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Drive Size Main | 1/4 |
|---|---|
| Height BX (IN) | 3.75 |
| Max Insulation OD (IN) | 0.62 |
| Weight BX (LB) | 1.875 |
| Drive Type Main | Internal Hex |
|---|---|
| Length (mm) | 65.2272 |
| Max Insulation OD (mm) | 15.748 |
| Width BX (IN) | 6 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 486A/B Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 3 |
| Number of Ports / Wireways | 3 |
| Number of Usable Taps | 3 |
| Contains DE-OX® | Yes |
|---|---|
| Number of Poles | 1 |
| Number of Usable Ports | 3 |
| Replacement Part(s) | PLUG-3/0 |
Material and Finish
| Conductor Material | Aluminum, Copper |
|---|---|
| Insulation | Plastisol |
| Wire Binding Hardware Finish | Tin |
| Connector Finish | Tin |
|---|---|
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 3/0 Str - 6 Str |
|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 3/0 Str - 6 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366907952 |
| Carton Quantity Description | STD PACK QTY 6 |
|---|---|
| NEMA Code | S-588-4 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 200 |
| Wire Binding Screw Size | 1/2 |
|---|
Color
| Cap Color Main | Black |
|---|---|
| Color | Black |
| Cap Color Tap | Black |
|---|
Environment and Temperature
| Environmental Conditions | Cold temperature rated to -45°C |
|---|---|
| Temperature Rating | 90°C |
| Flammability Rating | Insulation rated per UL 94 |
|---|
