Schneider Electric XALK1786H7 Control station, Harmony XALK, plastic, yellow lid, 1 red mushroom 40mm, turn to release, 1NC with monitoring, unmarked, UL/CSA certified
- MPN: XALK1786H7
- PPN: SCH-XALK1786H7
CAD
$192.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

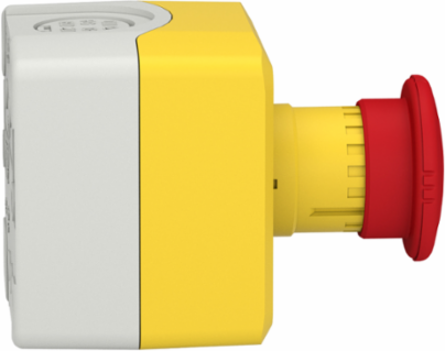

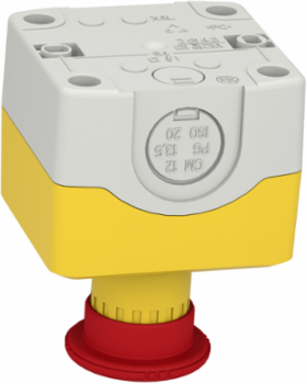

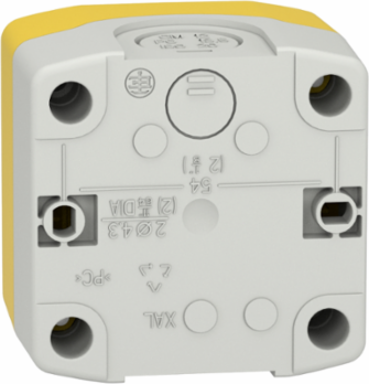

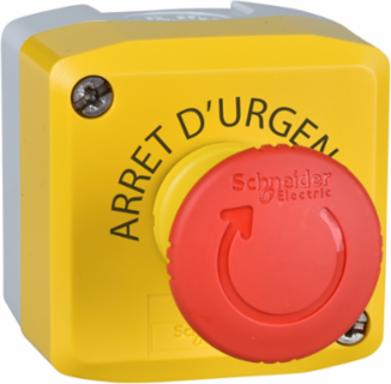

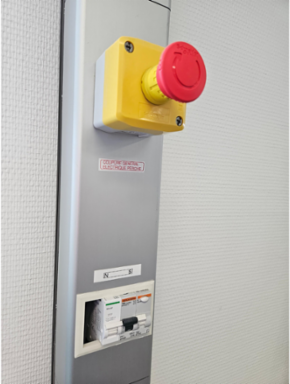

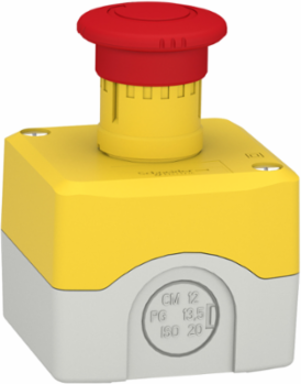

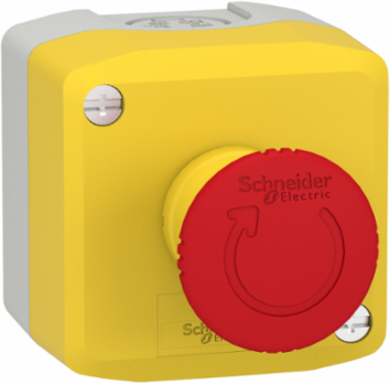

This product is part of the harmony XALD, XALK range , an offer of plastic control stations. This plastic control station has a yellow lid and has a mushroom head pushbutton. It operates with a turn to release mechanism. It offers emergency stop and emergency switching off functions. It comes with 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. The Harmony XALD, XALK range offers innovative features for simple and efficient use.
Documentation & Downloads

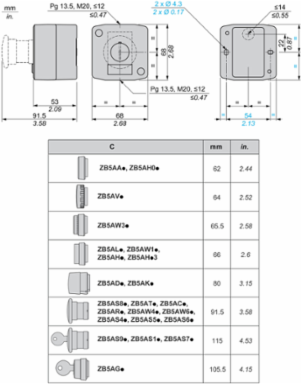

Specifications
Key Specifications
- Country of Origin
- Czechia
Physical Attributes
- Color Of Base Of Enclosure
- light grey RAL 7035)
- Housing Color
- yellow
Color Of Coveryellowyellow RAL 1021)
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Entry
- 1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13.5 cable gland and ISO M20
- Electrical Durability
- 300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Shape Of Screw Head
- cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Certificate Agency
- CSA, BV, UL Listed, LROS (Lloyds register of shipping), DNV, CE, CCC, CB Scheme, UKCA, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0317230266
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 1.0934543967
- Local Data Status
- Publishable
- Pre Comm Date
- 2021-12-06
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2506022EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2201
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- XALK
- Contacts Material
- silver alloy (Ag/Ni)
- Control Station Composition
- 1 mushroom head Ø 40 mm push-button, red 1 NC unmarked
- Device Short Name
- XALK
- Material
- polycarbonate
- Operating Force
- 47 N
- Operator Profile
- 1 mushroom head push-button
- Overvoltage Category
- class II conforming to IEC 60536
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- complete control station
- Range Of Product
- Harmony XALK
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ac Control Voltage 60 Hz
- 120-600 V
- Number Of Contacts As Normally Closed Contact
- 1
- Color Of Cover
- yellowyellow RAL 1021)
- Pep Code
- ENVPEP2506022EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Ith] Conventional Free Air Thermal Current
- 6 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Short-circuit Protection
- 6 A cartridge fuse gG IEC 60947-5-1
- Number Of Mushroom-shaped Push-buttons
- 1
- Package Weight(Lbs)
- 166.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Control Station Applicationemergency switching off function, emergency stop function
Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 3.4 mA IEC 60947-5-4
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Carbon Footprint Of The Distribution Phase [A4]0.0216762372, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0010134053, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.0609464
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationslow-break
Contacts Usagemonitoring contact
Dc Control Voltage125-600 V
Housing Materialplastic
Mechanical Durability300000 cycles
Operating Travel1.5 mm NC changing electrical state)4.3 mm total travel)
Operators Descriptionred unmarked 1 NC
Positive Openingwith IEC 60947-5-1 appendix K
Product Destinationfor XB5 Ø 22 mm control and signalling units
Protective TreatmentTH
Resetturn to release
Software VersionEIME v5.8.1
Tightening Torque0.8-1.2 N.m IEC 60947-1
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Ac Control Voltage 50 Hz120-600 V
Number Of Command Positions1
Color Of Base Of Enclosurelight grey RAL 7035)
Housing Coloryellow
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: France
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
[Ie] Rated Operational Current1.5 A 240 V, AC-15, B300 IEC 60947-5-13 A 120 V, AC-15, B300 IEC 60947-5-10.11 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
[Ui] Rated Insulation Voltage300 V 3)IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.34 mm² without cable end IEC 60947-1
Emergency Power Off (Epo)no
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509033
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653, IP66/IP67/IP69/IP69K
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2506022EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.2088134658
Environmental DisclosureENVPEP2506022EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2506022EN
Pcr VersionPCR-ed3-EN-2015 04 02
