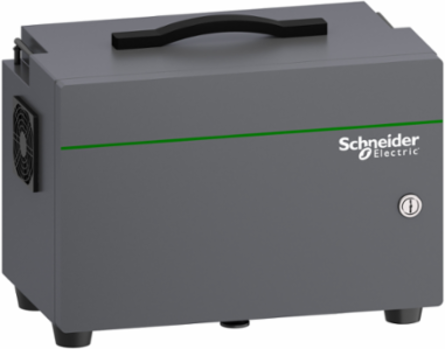

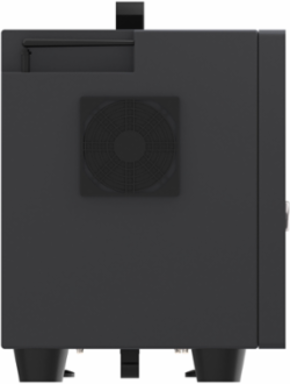

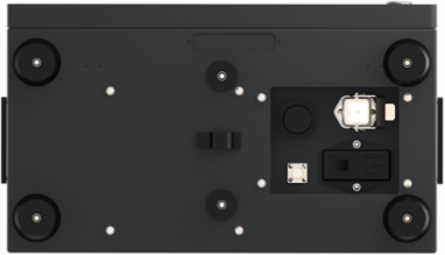

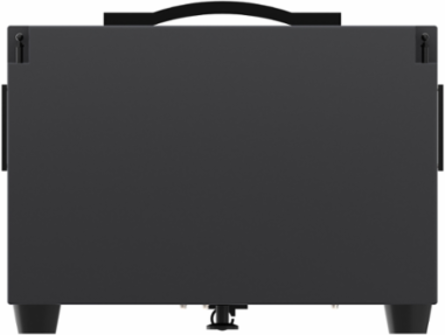

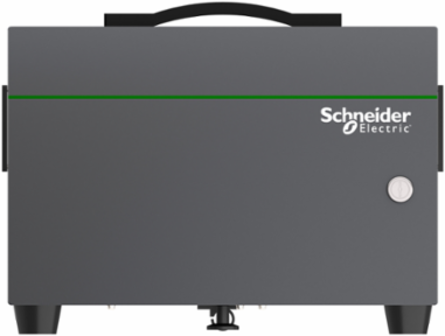

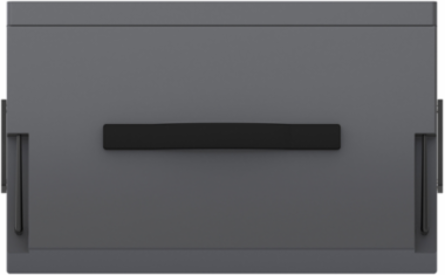

Schneider Electric LXMRL03C1000 Lexium Cobot Controller for 3 kg Payload Robot, IP44, 12 kg, Stainless Steel
- MPN: LXMRL03C1000
- PPN: SCH-LXMRL03C1000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric Lexium Cobot Controller is engineered to provide reliable control for collaborative robots designed to handle payloads of up to 3 kg. This robust controller features an IP44 rating, ensuring protection against dust and water ingress, making it suitable for diverse operating environments. Constructed from durable stainless steel, it not only meets the demands of industrial applications but also stands up to the rigors of everyday use, accommodating a total system weight of up to 12 kg. This controller is an essential component for enhancing automation and streamlining workflows while maintaining safety and operational efficiency in collaborative settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, China, Germany, France, United States
Depth235 mm
Communications & Management Attributes
- Communication Interface
- TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP
Complementary Attributes
- Rated Voltage
- 24 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM
- Marking
- CE, KC, TÜV
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - robotics
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 3
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Material
- stainless steel
- Product Or Component Type
- robot controller
- Returnability
- Yes
- Pep Code
- ENVPEP2209023EN
- Width Nominal
- 410 mm
- Package Weight(Lbs)
- 16.080 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Service Catalog ItemFinished good
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2209023EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2244
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLexium Cobot
Sustainable PackagingNo
Height Nominal307 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109170
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2209023EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- 3 kg payload robot cobot
- Pep Code
- ENVPEP2209023EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2209023EN
Ip Degree Of ProtectionIP44
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- robot controller
Range Of ProductLexium Cobot
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
Output Attributes
- Analogue Output Number
- 2
Discrete Output Number16
Input Attributes
- Analogue Input Number
- 2
- Input Voltage
- 100...240 V AC 50/60 Hz
Discrete Input Number16
