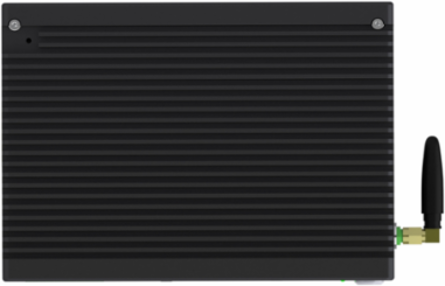

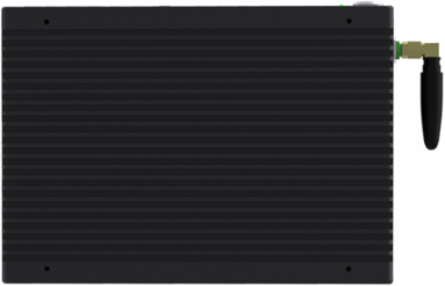

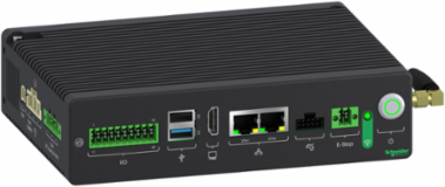

Schneider Electric LXMRL00C2000 compact controller, Lexium Cobot
- MPN: LXMRL00C2000
- PPN: SCH-LXMRL00C2000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

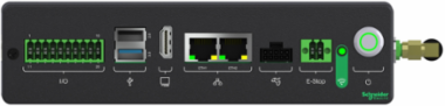

Lexium Cobot is a range of collaborative robots dedicated to assist workers in repetitive manipulation. This cobot compact controller monitors all collaborative robots with 3kg to 18kg payload with an input power of 30V to 60V DC. This cobot controller has 7 digital 24V DC channels, configurable as input or output. Lexium Cobot is developed to assist workers in taking care of repetitive and tedious tasks, to protect their health by automating assembly lines. It has IP20 rating. It embeds a communication interface (RJ45 connector) for TCP/IP, Modbus TCP, Modbus RTU, ProfiNet and Ethernet/IP. It is made of aluminum and steel, and weighs 1.1kg. It measures 128mm wide, 180mm high and 47mm deep. This compact controller is designed to monitor the cobots in automation architectures. It is certified by GB11291.1, ENISO10218-1, EN60204-1, ENISO12100, ENISO13849-1, EN61000-6-2, EN61000-6-4 +A1, ISO13849-1/2, ISO14644-1/9001, marked CE. This cobot controller monitors all collaborative robots with 3kg to 18kg payload It is designed to be mounted on a panel or cabinet, with guide rail. Collaborative robots are working companions of humans, reducing the drudgery of their work. Collaborative robot is a step towards industry 4.0 where the operator will work together with intelligent and manipulable robots.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, China, Germany, France
Communications & Management Attributes
- Communication Interface
- TCP/IP, Modbus TCP, Modbus RTU, Profinet, Ethernet/IP
Complementary Attributes
- Rated Voltage
- 24 V DC
Important Information Attributes
- Marking
- CE, KC, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 2.860344408018421, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.01465365569631834, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 259 kg CO2 eq., 258.511213676559
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Service Catalog Item
- Finished good
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2405020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2247
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Lexium Cobot
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 329 kg CO2 eq.
- Database Version
- 2023/02/20
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To power the "standard robot" up to 150W, in accordance with the relevant standards, during 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 65
- Length Total
- 180 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]
- 1.891
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- 6.822
Materialaluminium, steel
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 3.352546825934829
Carbon Footprint Of The Manufacturing Phase [A1 To A3]64 kg CO2 eq., 63.77007538228889
Local Data StatusPublishable
Pre Comm Date2023-08-23
Stocking FlagY
Device TypeMotion - robotics
TraceabilityYes
Average Life Duration15 year(s)
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Mounting Modepanel mounting
Product Or Component Typerobot controller
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2209023_V1
Pep Verification Date2024-05-31
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal47 mm
Width Nominal128 mm
Package Weight(Lbs)2.3 kg
Warranty (In Months)18
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]1.891
Customs Code8537109170
Environment Attributes Main
- Product Compatibility
- 3 kg payload robot cobot, 5 kg payload robot cobot, 7 kg payload robot cobot, 12 kg payload robot cobot, 18 kg payload robot cobot
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2405020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-05-31
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
China Rohs RegulationX
Carbon Footprint328.50883394849745
Environmental DisclosureENVPEP2209023_V1
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2209023_V1
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- robot controller
Range Of ProductLexium Cobot
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
Output Attributes
- Output Current
- <= 40 A, <= 40 A
Discrete Output Number7
Input Attributes
- Discrete Input Number
- 7

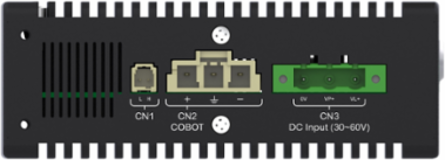

Input Voltage30...60 V DC
