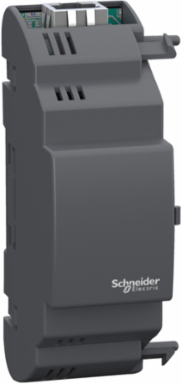

Schneider Electric TM171AETH Modicon M171 Ethernet Communication Module, 0.077 kg, IP20
- MPN: TM171AETH
- PPN: SCH-TM171AETH
CAD
$98.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric TM171AETH Modicon M171 Ethernet Communication Module is a reliable and efficient solution designed to enhance communication capabilities in automation and control systems. This module seamlessly integrates into your existing setup, providing robust Ethernet connectivity that supports data transfer and device interaction with minimal latency. With its IP20 rating, it is aptly suited for use within control cabinets, ensuring durability and protection in non-harsh environments. As a vital component in the PLC, HMI, and data acquisition categories, this communication module streamlines operations, making it an essential addition to modern industrial applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Italy, Sweden, United States |
|---|
Communications & Management Attributes
| Communication Port Protocol | HTTP, Ethernet, SMTP, BACnet IP, Modbus TCP |
|---|
Complementary Attributes
| Integrated Connection Type | Ethernet RJ45 - twisted pair |
|---|
Important Information Attributes
| Certificate Agency | cURus, EAC, CSA, CE |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon M171 |
| Supply | via base board EVD/EVC |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Package Weight(Lbs) | 176.0 g |
| Warranty (In Months) | 18 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Marking | CE |
| Product Or Component Type | communication module |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517620090 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C, -10-55 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20 |
| Product Compatibility | logic controller M171 performance |
| Relative Humidity | 10-90 % without condensation |
General Attributes
| Product Or Component Type | communication module |
|---|
| Range Of Product | Modicon M171 |
|---|
ETIM
| ETIM 8 | EC001423 |
|---|
| ETIM 9 | EC001423 |
|---|
