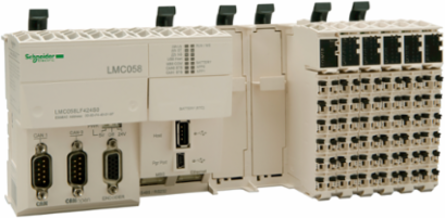

Schneider Electric LMC058LF424 Modicon Motion Controller 42 I/O 24V DC 0.77kg IP20
- MPN: LMC058LF424
- PPN: SCH-LMC058LF424
CAD
$3213.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon LMC058 range, an offer of motion controllers for coordinated, synchronised and interpolated motion control. This motion controller provides 42 discrete + 4 analogue I/Os and 3V CR2477M lithium battery. It is a compact base with a rated supply voltage of 24V DC and a rated current of 0.04A for embedded expert modules power, 10A for I/O power segment, 0.3A for main supply. It provides 26 totally discrete inputs, 16 totally discrete outputs, and 4 totally analogue inputs. It supports 128MB flash and 64MB RAM memory. It is an IP20 rated product. Its dimensions are 237.5mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.77kg. This product is certified by CE, CULus, CSA, C-Tick and GOST-R. It meets UL 508, IEC 61131-2, CSA C22.2 No 213 and CSA C22.2 No 142 standards. Compact and totally expandable, the Modicon Motion Controllers offer performant solutions in terms of motion control for synchronized axis, speed control, high speed counting and communication networks for machine builders. A full range of scalable controllers to design all your applications, thanks to a single software suite, SoMachine, including the same Motion Libraries based on PLCopen, Embedded I/O and numerous field buses.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Austria, Brazil, France |
|---|
| Depth | 85 mm |
|---|
Complementary Attributes
| Integrated Connection Type | 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps1 CAN port male SUB-D 9 CANmotion bus or CANopen master, 1 CAN port male SUB-D 9 CANopen master1 encoder female SUB-D 15, 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX1 isolated serial link mini B USB 480 Mbit/s, 1 isolated serial link USB type A 480 Mbit/s, 2 free slots PCI |
|---|---|
| Line Rated Current | 0.04 A embedded expert modules power10 A I/O power segment0.3 A main supply |
| Maximum Cable Distance Between Devices | <30 m fast input, <30 m fast input<30 m fast input, <30 m fast input |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Configurable Filtering Time | 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output |
| Insulation | between channels and internal logic 500 V AC, non-insulated between channels |
| Product Specific Application | -, - |
| Voltage State 1 Guaranteed | >= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V fast output, >= 15 V regular input, >= 15 V regular input>= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V regular input |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Dangerous Goods Code | LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g |
| Tier | 1 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Anti Bounce Filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
| Local Signalling | 1 LED CAN0 STS1 LED green/red CAN1 STS1 LED green/yellow MBS COM1 LED per channel APP01 LED red APP1 |
| Memory Type | 128 MB flash64 MB RAM |
| Power Consumption In W | 14.14 W |
| Product Or Component Type | Motion controller |
| Realtime Clock | without any user calibration clock, clock drift < 30 s/month at 25-25 °Cwith user calibration clock, clock drift <= 6 s/month |
| Shock Resistance | 15 gn 11 ms |
| Sustainable Packaging | No |
| Vibration Resistance | 1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail |
| Height Nominal | 99 mm |
| [Us] Rated Supply Voltage | 24 V DC embedded expert modules power |
| Disturbance Radiated/Conducted | CISPR 11 |
| Package Weight(Lbs) | 940.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 8 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 1 V/m (2...2.7 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4surge immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6conducted and radiated emissions conforming to CISPR 11 |
| Peak Current | 100 kA <= 70 s)main supply, 25 kA <= 500 s)I/O power segment, 50 kA <= 150 s)embedded expert modules power1.2 A > 70 s)main supply |
| Voltage State 0 Guaranteed | <= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V fast output, <= 5 V regular input, <= 5 V regular input<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V regular input |
| Certificate Agency | cULus, CSA, C-tick, GOST-R |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - motion controller |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Data Backed Up | battery variables of type retain and retain persistent |
| Marking | CE |
| Mounting Support | symmetrical DIN rail |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon LMC058 |
| Returnability | No |
| Supply Voltage Limits | 20.4-28.8 V |
| Transmission Rate | 10 kbit/s 5000-5000 m CANopen1000 kbit/s 4-4 m CANopen125 kbit/s 500-500 m CANopen20 kbit/s 2500-2500 m CANopen250 kbit/s 250-250 m CANopen50 kbit/s 1000-1000 m CANopen500 kbit/s 100-100 m CANopen800 kbit/s 25-25 m CANopen |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 237.5 mm |
| Discrete I/O Number | 42 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Operation | 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % without condensation |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP20IEC 61131-2 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Storage Altitude | 0-3000 m |
General Attributes
| Product Or Component Type | Motion controller |
|---|
| Range Of Product | Modicon LMC058 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Discrete Output Current | 4 mA fast output |
|---|---|
| Discrete Output Number | 12 output4 fast output |
| Output Voltage Limits | 19.2...28.8 V |
| Discrete Output Logic | source |
|---|---|
| Discrete Output Voltage | 24 V DC |
Surge Protection And Filtering Attributes
| Configurable Filtering Time | 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output |
|---|
| Anti Bounce Filtering | 2 µs...4 ms configurable fast input/regular input and fast output |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Type | current 0...20 mA, current 4...20 mAvoltage +/- 10 V |
|---|---|
| Discrete Input Logic | sink fast input, sink regular inputsource input |
| Analogue Input Number | 4 |
| Counting Input Number | 8 200 kHz |
| Discrete Input Voltage | 24 V |
| Discrete Input Current | 4 mA fast input, 4 mA regular input |
|---|---|
| Input Impedance | 6 kOhm fast input, 6 kOhm regular input |
| Analogue Input Resolution | 12 bits |
| Discrete Input Number | 10 fast input12 input4 regular input |
| Discrete Input Voltage Type | DC |
Batteries & Runtime Attributes
| Battery Life | 1.5 year(s) |
|---|
| Battery Type | 3 V CR2477M lithium |
|---|
