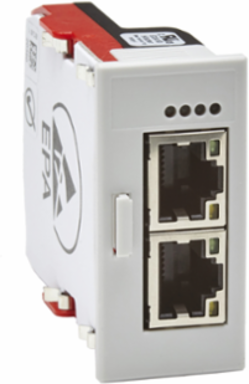

Schneider Electric VW3E704100000 EtherNet/IP Network Module with 2 RJ45 Connectors, IP20 Rated
- MPN: VW3E704100000
- PPN: SCH-VW3E704100000
- UNSPSC: 26111515
CAD
$1771.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon LMC078 range, an offer of EtherNet/IP network modules for motion controllers. This EtherNet/IP network module features a slave access and RS485 physical interface. It is a communication module supports 100Mbps transmission rate and communication service is EtherNet/IP adapter. It is integrated with EtherNet/IP - 2 RJ45 connectors. It is an IP20 rated product. It weighs 0.08kg. This product is certified by CE, CSA and CULus. It meets CSA C22.2 No 142, EN/IEC 61131-2 zone B and UL 508 standards. It is compatible with Modicon LMC078 motion controllers and PacDrive LMC Eco controllers.
Features
- RJ45 physical interface
- 10BASE-T/100BASE-T port Ethernet
- For Modicon LMC078 motion controllers
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil |
|---|
Communications & Management Attributes
| Communication Service | Ethernet/IP adapter |
|---|
Complementary Attributes
| Integrated Connection Type | Ethernet/IP - 2 RJ45 100 Mbit/s |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Certificate Agency | CSA, CE, cULus |
| Local Publishable Date | 2026-02-24 |
| Serviceability | No |
| Weee Scope | Out |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Marking | CE |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon LMC078 |
| Shock Resistance | 100 m/s² |
| Vibration Resistance | 10 m/s² direct mounting |
| Customs Code | 8517620090 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Port Ethernet | 10BASE-T/100BASE-T |
| Product Or Component Type | Ethernet/IP network module |
| Returnability | Yes |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Ip Degree Of Protection | IP20IEC 61131-2 |
| Packaging Made With Recycled Cardboard | Yes |
| Product Compatibility | motion controller |
| Take Back | No |
|---|---|
| Ambient Air Temperature For Operation | 5-55 °C |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % without condensation |
General Attributes
| Product Or Component Type | Ethernet/IP network module |
|---|
| Range Of Product | Modicon LMC078 |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|---|
| ETIM 10 | EC002025 |
| ETIM 9 | EC002025 |
|---|
