Lexium 32i Control Unit, 24V DC Input, IP65 Rated, 0.63kg Weight
Schneider Electric

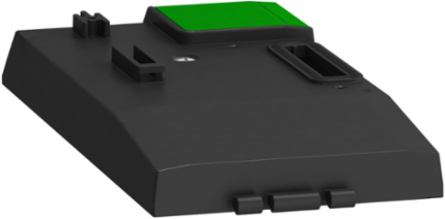

Schneider Electric LXM32IETH Lexium 32i Control Unit, 24V DC Input, IP65 Rated, 0.63kg Weight

  • MPN: LXM32IETH
  • PPN: SCH-LXM32IETH
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1940.82

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Lexium 32i range, an offer of control units for integrated servo drive from 0.6kW to 2.2kW. This control unit offers 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is furnished with RJ45 for Modbus and M12 for Profinet connectors. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.63kg. The Lexium 32i is the perfect drive for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CSA, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. Lexium BMI servo motors are available in 2 flange sizes and 2 different lengths, a continuous torque range from 1.7Nm to 7.2Nm for speeds up to 4700RPM. Lexium 32i integrated servo drive from 0.6kW to 2.2kW is designed for application areas requiring high precision and advanced motor control.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, United States

    Communications & Management Attributes

    Communication Interface
    Profinet, Integrated

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Contact Bounce Time
    <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B0.25 µs...1.5 ms DI
    Number Of Addresses
    1-127 CANopen, CANmotion, 1-247 Modbus
    Status Led
    1 LED (Red) servo drive voltage, 1 LED error, 1 LED RUN
    Carbon Footprint Of The Distribution Phase [A4]
    0.0812841738, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0059571901, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    kg CO2 eq., 0
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    Motion - integrated drive
    Traceability
    Yes
    Average Life Duration
    15 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Compatibility Code
    LXM32i
    Control Signal Type
    servo motor encoder feedback
    Environmental Characteristic
    classes 3C1 conforming to IEC 60721-3-3
    Marking
    CE
    Operating Position
    vertical +/- 10 degree
    Product Or Component Type
    control unit
    Range Of Product
    Lexium 32i
    Safety Function
    safe torque off safety function, Integrated
    Sampling Duration
    DI 0.25 ms discrete
    Software Version
    EIME v5.9.1
    Total Lifecycle Carbon Footprint
    15 kg CO2 eq.
    Type Of Cooling
    natural convection
    Pep Code
    ENVPEP1609004EN
    Pep Verification Date
    2021-03-01
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To drive and control the integrated synchronous electric motor for 10 years 100% of the time
    Functional-unit Unit
    unité (unit)
    Energy Model - Manufacturing [A1-a3]
    Energy model used: INDONESIA
    Energy Model - Use [B6]
    Electricity Mix; AC; < 1kV; EU-27
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8504404000
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Electromagnetic Compatibilityconducted EMC conforming to EN 55011 class A group 1, conducted EMC conforming to EN 55011 class A group 2, conducted EMC conforming to EN/IEC 61800-3 environment 2 category C3, conducted EMC conforming to IEC/EN 61800-3 category C2EMC immunity conforming to IEC/EN 61800-3 environments 1 and 2EMC immunity level 3 conforming to IEC 61000-4-2, EMC immunity level 3 conforming to IEC 61000-4-3, EMC immunity level 3 conforming to IEC 61000-4-5EMC immunity level 4 conforming to IEC 61000-4-4, radiated EMC conforming to EN 55011 class A group 2, radiated EMC conforming to IEC/EN 61800-3 category C3
    Response Time<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B
    Certificate AgencyTÜV, UL, CSA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.1642007758
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 14.9665321955
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1609004EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1905
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionAdvanced
    Market SegmentationIndustrial
    Braking Current50 mA
    Connector TypeRJ45 ModbusM12 PROFINET
    Device Short NameLXM32i
    Format Of The Driveboard
    Method Of Accessslave
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Protection Typeagainst reverse polarity inputs signalagainst short-circuits outputs signal
    ReturnabilityNo
    Safety LevelSIL 3 IEC 61508PL = e ISO 13849-1
    Shock Resistance15 gn 11 ms IEC 60028-2-27
    Sustainable PackagingNo
    Transmission Rate9600, 19200, 38400 bps 0-40 m Modbus
    Vibration Resistance1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
    Package Weight(Lbs)656.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-70 °C, -25-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    15.2179743351
    Circularity Profile
    ENVEOLI1609004EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1609004EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation0-50 °C UL
    Environmental DisclosureENVPEP1609004EN
    Ip Degree Of ProtectionIP65
    Packaging Without Single Use PlasticNo
    Relative HumidityClass 3K3 (5 to 85 %) without condensation IEC 60721-3-3
    Pep Verification Date2021-03-01
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    control unit
    Range Of ProductLexium 32i

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Discrete Output Voltage
    <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC
    Discrete Output Number
    2
    Response Time On Output
    250 µs DO)discrete
    Discrete Output Logicpositive or negative DO)IEC 61131-2
    Discrete Output Typelogic DO)24 V DC

    Input Attributes

    Discrete Input Logic
    positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V IEC 61131-2 Type 1, positive DI)> 19 V < 9 V IEC 61131-2 Type 1, positive or negative DI)< 5 V > 15 V IEC 61131-2 Type 1
    Discrete Input Number
    2 safety4 logic
    Discrete Input Voltage24 V DC capture, 24 V DC logic, 24 V DC safety
