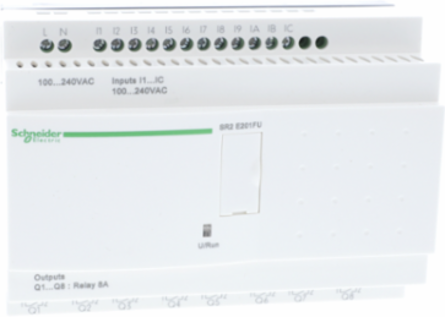

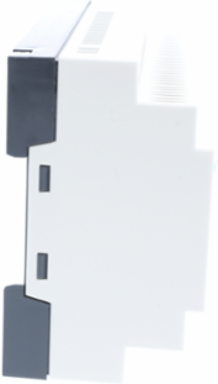

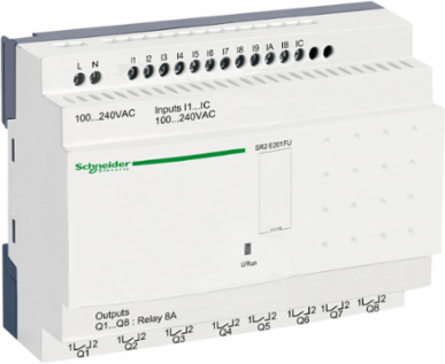

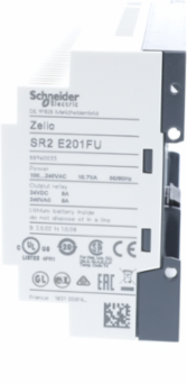

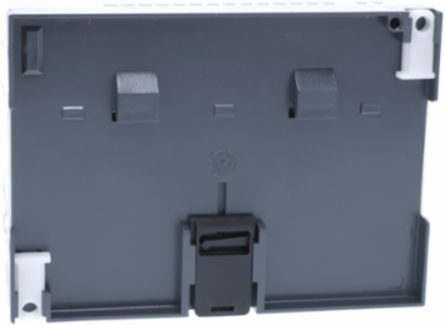

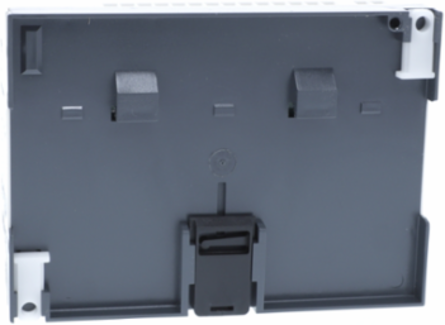

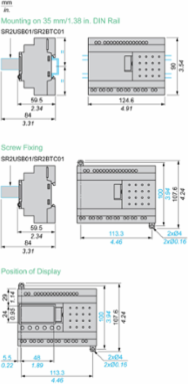

Schneider Electric SR2E201FU Zelio Logic Compact Smart Relay, 20 IO, 100-240V AC, 0.35kg
- MPN: SR2E201FU
- PPN: SCH-SR2E201FU
CAD
$326.29
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Schneider Electric Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 100 to 240 volts alternating current, has 20 inputs / outputs with screw-clamp terminals and has an integrated clock. This compact programmable relay is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. This product meets EN/IEC 61000-4-3, EN/IEC 61000-4-11, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-12, EN/IEC 61000-4-4 level 3, N/IEC 61000-4-5, EN/IEC 60068-2-27 Ea and EN/IEC 61000-4-6 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Features
- This high-density logic module features 20 integrated I/O, consisting of 12 discrete AC inputs and 8 robust relay outputs. This generous capacity allows you to replace multiple traditional timers, counters, and hardwired relays with a single programmable unit, shrinking your control panel footprint while cutting hardware and wiring costs.
- Engineered for seamless integration into diverse electrical systems, this smart relay supports a wide rated supply voltage ranging from 100V AC to 240V AC at 50/60 Hz. The flexible voltage tolerances shield your automated processes from common line voltage fluctuations, ensuring reliable, uninterrupted up-time in demanding industrial environments.
- Designed specifically without a built-in screen, the blind front panel prevents unauthorized field personnel from tampering with parameters or viewing proprietary code. Programming is executed securely via PC using user-friendly Zelio Soft software in either standard Ladder Logic or Function Block Diagram (FBD), giving control engineers complete configuration security over automated machinery, lighting management, or HVAC systems.
- Equipped with an internal real-time clock, this programmable controller flawlessly manages time-sensitive automation sequences, automated building access, or facility lighting intervals. The automated clock keeps schedules highly synchronized over long intervals with minimal annual drift, meaning you save on maintenance labor because you do not have to manually re-adjust timers.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Complementary Attributes
- Maximum Altitude Transport
- 3048 m
Maximum Supply Current100 mA 100 V without extension)50 mA 240 V without extension)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current State 0 Guaranteed
- <= 0.5 mA discrete input), <= 0.5 mA discrete input)<= 0.5 mA discrete input), <= 0.5 mA discrete input)
- Environmental Characteristic
- EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2
- Response Time
- 50...255 ms FBD from state 1 to state 0)discrete input, 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input50...255 ms FBD from state 0 to state 1)discrete input10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
- Voltage State 0 Guaranteed
- <= 40 V discrete input, <= 40 V discrete input<= 40 V discrete input, <= 40 V discrete input
- Certificate Agency
- GL, GOST, CSA, UL, C-tick
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6690537443777179, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.0633314190336879
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 279 kg CO2 eq., 278.54545857193057
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Clock
- with
- Contacts Type And Composition
- NO relay output
- Electrical Durability
- AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
- Isolation Voltage
- 1780 V
- Mechanical Durability
- 10000000 cycles relay output
- Overvoltage Category
- III conforming to IEC 60664-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Type
- against inversion of terminals (control instructions not executed)
- Returnability
- Yes
- Supply Frequency
- 50/60 Hz
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 321 kg CO2 eq.
- Pep Code
- ENVPEP0604006EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Package Weight(Lbs)
- 334.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Current State 1 Guaranteed>= 0.17 mA discrete input), >= 0.17 mA discrete input)>= 0.17 mA discrete input), >= 0.17 mA discrete input)
Number Or Control Scheme Lines0-240 ladder, 0-500 FBD
Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
Voltage State 1 Guaranteed>= 79 V discrete input, >= 79 V discrete input>= 79 V discrete input, >= 79 V discrete input
Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solidscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.8439627543211645, 0.8 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]41 kg CO2 eq., 41.284737595071434
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI0604006EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1846
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Checksprogram memory on each power up
Clock Drift12 min/year 0-55 °C6 s/month 25-25 °C
Cycle Time6-90 ms
Immunity To Microbreaks10 ms
Local Displaywithout
Operating Rate In Hz0.1 Hz at Ie)relay output10 Hz no load)relay output
Power Consumption In Va11 VA without extension
Product Or Component Typecompact smart relay
Range Of ProductZelio Logic
Software Versionv6.2.2
Supply Voltage Limits85-264 V
Tightening Torque0.5 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh749.856
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
[Us] Rated Supply Voltage100...240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI0604006EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 95-95 % without condensation or dripping water
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint321.4065440847346
Environmental DisclosureENVPEP0604006EN
Ip Degree Of ProtectionIP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP0604006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- compact smart relay
Range Of ProductZelio Logic
ETIM
- ETIM 8
- EC001417
ETIM 9EC001417
Output Attributes
- Number Of Outputs
- 8 relay
- Output Voltage Limits
- 5...30 V DC relay output)24...250 V AC
Output Thermal Current8 A for all 8 outputs relay output
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Frequency
- 57...63 Hz, 47...53 Hz
- Discrete Input Current
- 0.6 mA
- Discrete Input Voltage
- 100...240 V AC
Analogue Input Number0
Discrete Input Number12
Input Impedance350 kOhm discrete input
