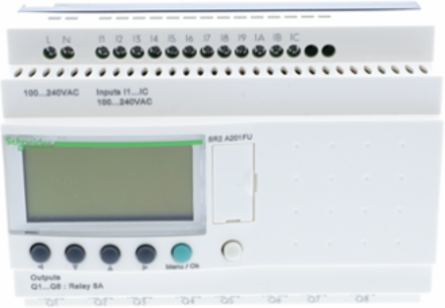

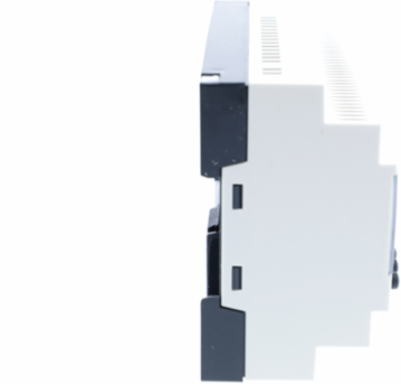

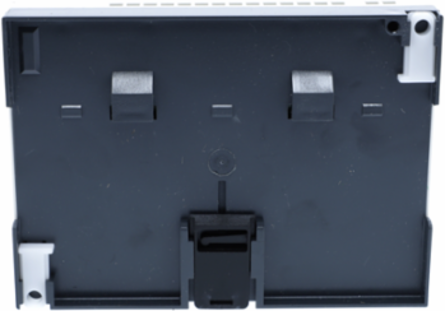

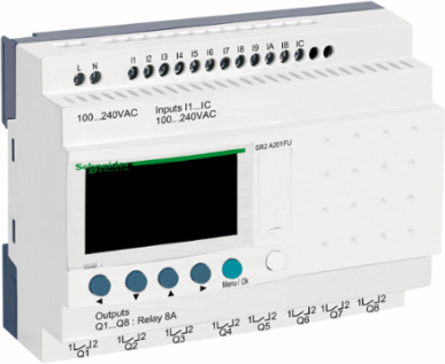

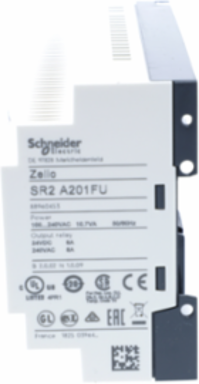

Telemecanique Sensors SR2A201FU Zelio Logic Compact Smart Relay 20 I/O 100-240V AC, IP20/IP40

  • MPN: SR2A201FU
  • PPN: SCH-SR2A201FU

CAD

$346.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and without clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 8 relay outputs with normally opened contact and 12 discrete inputs. It has a rated supply voltage of 100V to 240V AC, a maximum supply current of 50mA at 240V (without extension), 100mA at 100V (without extension) and a power consumption of 11VA without extension. It is an IP20 and IP40 rated product. It weighs 0.38kg. This product meets EN/IEC 61000-4-12, EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-5, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-11 and EN/IEC 61000-4-2 level 3 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

Features

  • Outfitted with 12 discrete inputs and 8 robust relay outputs, this compact smart relay packs considerable control capacity into a space-saving footprint. It provides small-scale industrial automation engineers and panel builders with enough I/O density to manage multiple sensors, switches, and actuators simultaneously, eliminating the need to buy and wire costly expansion modules.
  • Engineered with a highly flexible wide-range power supply, this device accepts line voltages anywhere from 85V to 264V AC at 50/60 Hz. This wide operational threshold safeguards your logic programs against sudden voltage drops, brownouts, and minor grid fluctuations, allowing you to deploy the same control panel worldwide without modifying your transformer setups.
  • Each of the 8 normally open (NO) relay outputs is rated to safely conduct a continuous thermal current of up to 8 Amps across voltages ranging from 24V to 250V AC. This high switching capacity enables direct control over contactor coils, fractional horsepower motors, and signaling lights, reducing your bill of materials by eliminating intermediate isolating relays.
  • Configured through Zelio Soft 2 software, this relay supports both Function Block Diagram (FBD) and traditional Ladder Logic (LADDER) languages, alongside graphical programming options. This versatility ensures that both experienced PLC programmers and traditional electricians can seamlessly develop, modify, and audit control strategies for lighting sequences, HVAC control, or conveyor automation.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product
Zelio Logic
Product Or Component Typecompact smart relay

Complementary

Contacts Type And Composition
NO relay output
Discrete Input Frequency
47...53 Hz || 57...63 Hz
Output Thermal Current
8 A for all 8 outputs relay output
Number Or Control Scheme Lines
0-240 ladder
Clock Drift
12 min/year 0-55 °C || 6 s/month 25-25 °C
Discrete Input Current
0.6 mA
Response Time
50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
Local Display
with
[Uimp] Rated Impulse Withstand Voltage
4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Output Voltage Limits
5...30 V DC relay output) || 24...250 V AC
Connections - Terminals
screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Voltage State 1 Guaranteed
>= 79 V discrete input
Supply Voltage Limits
85-264 V
Mechanical Durability
10000000 cycles relay output
Tightening Torque
0.5 N.m
Switching Capacity In Ma
>= 10 mA 12 V relay output)
Operating Rate In Hz
0.1 Hz at Ie)relay output || 10 Hz no load)relay output
Cycle Time
6-90 ms
[Us] Rated Supply Voltage
100...240 V AC
Input Impedance350 kOhm discrete input
Number Of Outputs8 relay
Discrete Input Voltage100...240 V AC
Backup Time10 years 25 °C
Power Consumption In Va11 VA without extension
Current State 1 Guaranteed>= 0.17 mA discrete input)
Clockwithout
Net Weight0.38 kg
Voltage State 0 Guaranteed<= 40 V discrete input
Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
Analogue Input Number0
Current State 0 Guaranteed<= 0.5 mA discrete input)
Overvoltage CategoryIII IEC 60664-1
Maximum Supply Current100 mA 100 V without extension) || 50 mA 240 V without extension)
Isolation Voltage1780 V
Protection Typeagainst inversion of terminals (control instructions not executed)
Discrete Input Number12
Supply Frequency50/60 Hz
Checksprogram memory on each power up

Environment

Product Certifications
GL || C-Tick || CSA || UL || GOST
Disturbance Radiated/Conducted
class B EN 55022-11 group 1
Immunity To Microbreaks
10 ms
Ip Degree Of Protection
IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage
-40-70 °C
Maximum Altitude Transport
3048 m
StandardsIEC 61000-4-12 || IEC 60068-2-6 Fc || IEC 61000-4-5 || IEC 60068-2-27 Ea || IEC 61000-4-6 level 3 || IEC 61000-4-3 || IEC 61000-4-4 level 3 || IEC 61000-4-11 || IEC 61000-4-2 level 3
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental CharacteristicEMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Pollution Degree2 IEC 61131-2
Relative Humidity95-95 % without condensation or dripping water
Operating Altitude2000 m

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2011013EN
Pvc Free
Yes
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile
ENVEOLI2011013EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
