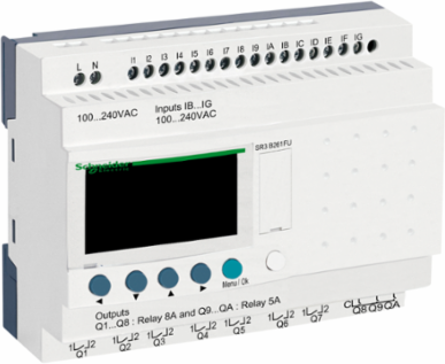

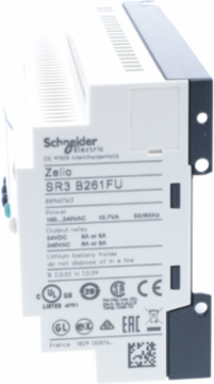

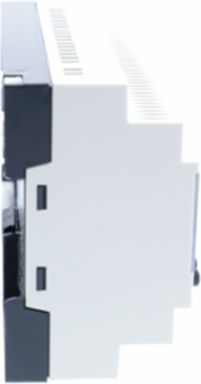

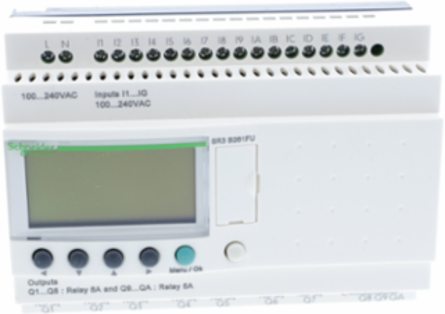

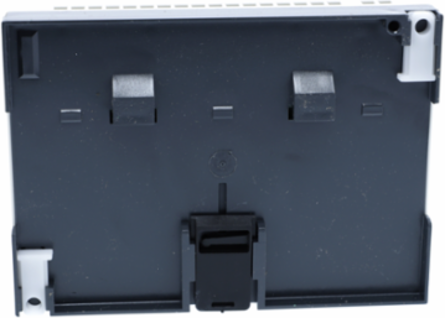

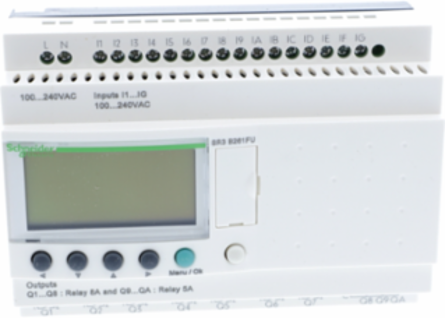

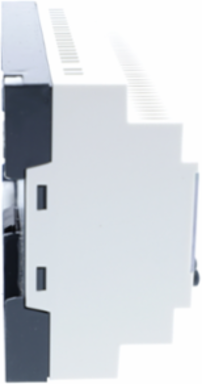

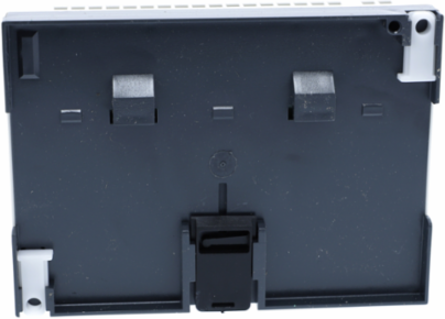

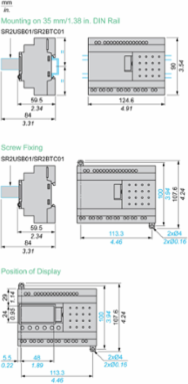

Schneider Electric SR3B261FU Zelio Logic Modular Smart Relay, 26 IO, 100-240V AC
- MPN: SR3B261FU
- PPN: SCH-SR3B261FU
CAD
$460.12
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Features
- Engineered with a robust high-density configuration, this Zelio Logic smart relay features 26 integrated I/O points, consisting of 16 discrete inputs and 10 normally-open (NO) relay outputs. This comprehensive capacity allows control engineers to consolidate multiple sensors, limit switches, and actuators into a single compact housing, reducing total panel space and eliminating the need for costly external expansion modules.
- Operating on a wide rated supply voltage range of 100V to 240V AC (with physical tolerances spanning 85V to 264V at 50/60 Hz), this programmable logic controller runs directly on standard plant power. Industrial electricians can seamlessly wire 100-240V AC discrete inputs without installing extra step-down transformers or external power supplies, significantly minimizing points of failure and accelerating installation time.
- Designed with an onboard local LCD display and diagnostic navigation buttons, this unit allows for real-time monitoring of control schemes directly at the machine face. Supporting up to 500 lines of Function Block Diagram (FBD) programming or 240 lines of traditional Ladder Logic, it gives automation technicians the flexibility to troubleshoot processes, force inputs, and adjust variables without dragging a laptop onto the factory floor.
- Featuring a compact, low-profile footprint that snaps directly onto a standard 35mm DIN rail or mounts via retractable screw lugs, this controller integrates perfectly into crowded electrical enclosures. To satisfy stringent regulatory audits and corporate safety mandates, the unit carries full UL, CSA, C-Tick, and GL compliance certifications, guaranteeing reliable performance under harsh electromagnetic interference and vibration-heavy processing environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Complementary Attributes
- Maximum Supply Current
- 100 mA 100 V without extension)50 mA 240 V without extension)60 mA 240 V with extensions), 80 mA 100 V with extensions)
Maximum Altitude Transport3048 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current State 0 Guaranteed
- <= 0.5 mA discrete input), <= 0.5 mA discrete input)<= 0.5 mA discrete input), <= 0.5 mA discrete input)
- Environmental Characteristic
- EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone Blow voltage directive conforming to IEC 61131-2
- Response Time
- 50...255 ms FBD from state 1 to state 0)discrete input, 50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input50...255 ms FBD from state 0 to state 1)discrete input10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
- Voltage State 0 Guaranteed
- <= 40 V discrete input, <= 40 V discrete input<= 40 V discrete input, <= 40 V discrete input
- Certificate Agency
- GOST, GL, CSA, UL, C-tick
- Carbon Footprint Of The Distribution Phase [A4]
- 0.7742758466092284, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.07329155318438658
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 279 kg CO2 eq., 278.54545857193057
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Checks
- program memory on each power up
- Clock Drift
- 12 min/year 0-55 °C6 s/month 25-25 °C
- Cycle Time
- 6-90 ms
- Immunity To Microbreaks
- 10 ms
- Local Display
- with
- Operating Rate In Hz
- 0.1 Hz at Ie)relay output10 Hz no load)relay output
- Power Consumption In Va
- 12 VA without extension17 VA with extensions
- Product Or Component Type
- modular smart relay
- Range Of Product
- Zelio Logic
- Software Version
- v6.2.2
- Supply Voltage Limits
- 85-264 V
- Tightening Torque
- 0.5 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 749.856
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- [Us] Rated Supply Voltage
- 100...240 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490080
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Current State 1 Guaranteed>= 0.17 mA discrete input), >= 0.17 mA discrete input)>= 0.17 mA discrete input), >= 0.17 mA discrete input)
Number Or Control Scheme Lines0-500 FBD, 0-240 ladder
Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
Voltage State 1 Guaranteed>= 79 V discrete input, >= 79 V discrete input>= 79 V discrete input, >= 79 V discrete input
Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² 25 AWG...14 AWG) solidscrew terminals, 1 x 0.25...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) solidscrew terminals, 2 x 0.25...2 x 0.75 mm² 24 AWG...18 AWG) flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9766928017366592, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]48 kg CO2 eq., 47.777589501714715
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI0604006EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1846
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Clockwith
Contacts Type And CompositionNO relay output
Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
Isolation Voltage1780 V
Mechanical Durability10000000 cycles relay output
Overvoltage CategoryIII conforming to IEC 60664-1
Product AvailabilityStock - Normally stocked in distribution facility
Protection Typeagainst inversion of terminals (control instructions not executed)
ReturnabilityYes
Supply Frequency50/60 Hz
Sustainable PackagingYes
Total Lifecycle Carbon Footprint328 kg CO2 eq.
Pep CodeENVPEP0604006EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Disturbance Radiated/Conductedclass B EN 55022-11 group 1
Package Weight(Lbs)390.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 328.14730827517553
- Environmental Disclosure
- ENVPEP0604006EN
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block)IP40 IEC 60529 front panel)
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP0604006EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI0604006EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % without condensation or dripping water
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- modular smart relay
Range Of ProductZelio Logic
ETIM
