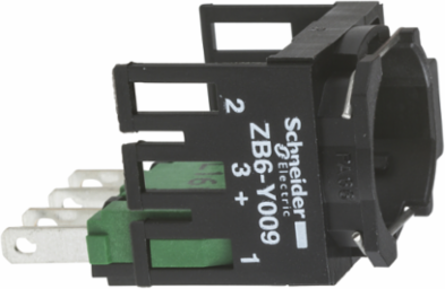

Schneider Electric ZB6Z4B Harmony XB6 Push Button Body, 16mm, IP65, 2 NC Faston Connector
- MPN: ZB6Z4B
- PPN: SCH-ZB6Z4B
CAD
$21.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony ZB6Z4B is a single contact block with body/fixing collar, 2 NC faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB6
- Fixing Collar Material
- plastic
- Contacts Type And Composition
- 2 NC
- Contact Operation
- slow-break
- [Us] Rated Supply Voltage
- <= 250 V
Product Or Component Typecomplete body for push-buttons or selector switches
Connections - TerminalsFaston connector || Faston connector 2.8 x 0.5 mm
Sale Per Indivisible Quantity1
Device Short NameZB6
Complementary
- Contacts Usage
- standard
- Short-Circuit Protection
- 6 A cartridge fuse gG IEC 60947-5-1
- Operating Travel
- 1 mm NC changing electrical state) || 4.3 mm total travel)
- Positive Opening
- with IEC 60947-5-1 appendix K
- Cad Overall Height
- 18 mm
- [Ie] Rated Operational Current
- 3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300
- Cad Overall Width
- 18 mm
Terminals Description Iso N°1(11-12)NC
Operating Force2.5 N NC changing electrical state
Contacts Materialsilver alloy (Ag/Ni)
Net Weight0.006 kg
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Cad Overall Depth40 mm
Environment
- Product Certifications
- UL || CCC || GOST || CSA
- Standards
- JIS C 4520 || IEC 60947-5-1 || UL 508 || IEC 60947-5-5 || JIS C 852 || CSA C22.2 No 14 || IEC 60947-1
- Vibration Resistance
- +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
