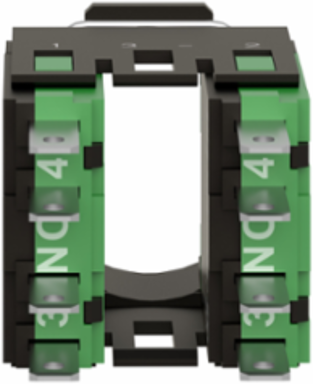

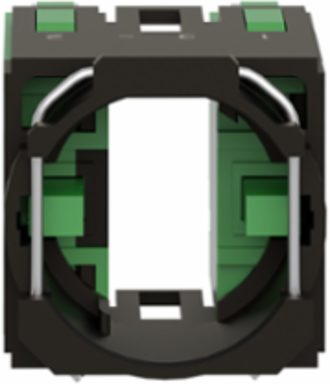

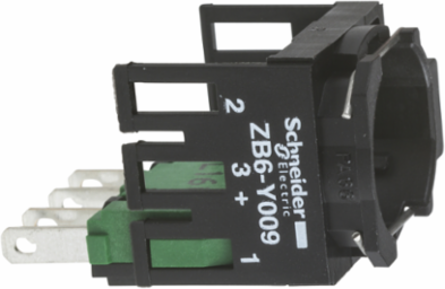

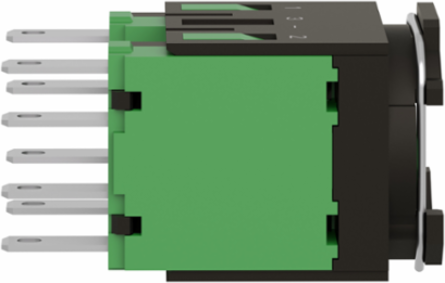

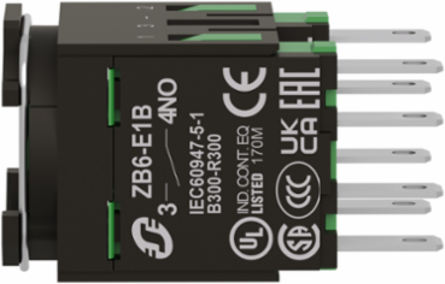

Schneider Electric ZB6Z3B Harmony XB6 Push Button Body with Collar, 2 NO Faston Connector, 18mm
- MPN: ZB6Z3B
- PPN: SCH-ZB6Z3B
CAD
$21.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony ZB6Z3B is a single contact block with body/fixing collar, 2 NO faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, Mexico
Physical Attributes
- Cad Overall Depth
- 40 mm
- Cad Overall Width
- 18 mm
Cad Overall Height18 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Certificate Agency
- CCC, UL, GOST, CSA
- Connections - Terminals
- Faston connector, Faston connector 2.8 x 0.5 mm
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0007846068, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0021029721, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Future Imap
- 8.2
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2312039EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- ZB6
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard
- Electrical Reliability
- λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
- Fixing Collar Material
- plastic
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- complete body for push-buttons or selector switches
- Range Of Product
- Harmony XB6
- Sale Per Indivisible Quantity
- 1
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a turn to release mushroom, diameter 30mm, with trigger action and mechanical latching. It features 1 NO + 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It has energy consumption of 0.0675 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
- [Us] Rated Supply Voltage
- <= 250 V<= 250 V
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Travel2 mm NO changing electrical state), 4.3 mm total travel)
Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
[Ie] Rated Operational Current3 A 120 V, AC-15, B300, 1.5 A 240 V, AC-15, B300, 0.1 A 250 V, DC-13, R300, 0.22 A 125 V, DC-13, R300
Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0106432198
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0 kg CO2 eq., 0.0488173375
Local Data StatusPublishable
Return IndicatorY
Future Msrp10.61
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Operationslow-break
Contacts Type And Composition2 NO
Device Short NameZB6
Electrical Shock Protection Classclass II conforming to IEC 61140
Operating Force1.6 N NO changing electrical state
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.1 kg CO2 eq.
Pep CodeENVPEP2312039EN
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US
Short-circuit Protection6 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)8.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.0623481362
- Environmental Disclosure
- ENVPEP2312039EN
- Ip Degree Of Protection
- IP65 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2312039EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2312039EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body for push-buttons or selector switches
Range Of ProductHarmony XB6
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
