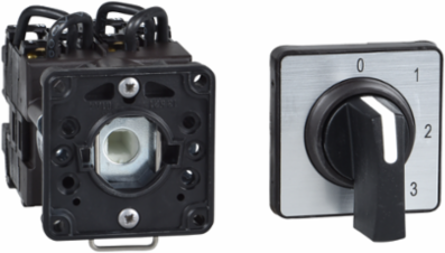

Schneider Electric K2C003ACH Harmony K Cam Switch, 3 Poles, 2 Positions, 20A, 45x45mm
- MPN: K2C003ACH
- PPN: SCH-K2C003ACH
CAD
$75.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This K Cam Switch from Schneider Electric is engineered for advanced control in various automation applications. Featuring three poles and two positions, it handles up to 20A of current, making it ideal for a range of operational needs. With a compact design of 45x45mm, this cam switch offers versatility without compromising space, ensuring reliability and ease of handling in automated systems. Its robust construction and efficient performance make it a key component for professionals seeking precise control in their projects.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Short-Circuit Current
- 10000 A
- Electrical Durability
- 200000 cycles AC-23, 200000 cycles AC-3, 600000 cycles AC-15, 600000 cycles AC-21
- Voltage
- 690 V
- Poles
- 3P
- Switching Angle
- 45°
- Contact Operation
- Slow-break
- Mounting Hole Diameter
- 22 mm
- Handle Color
- Black
- Mounting Location
- Front
- IP Degree of Protection
- IP65 IEC 60529
- Product Certifications
- CSA, UL, CCC
- Ambient Air Temperature for Operation
- -25 to 55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Toxic Heavy Metal Free
- Yes
- RoHS Compliance
- Pro-active compliance (out of EU RoHS legal scope)
- Reach Compliance
- Free of SVHC above threshold
Conventional Enclosed Thermal Current16 A
Short-Circuit Protection20 A cartridge fuse gG
Maximum Operating Rate2.5 cyc/min AC-21, AC-23, AC-3; 8.333 cyc/min AC-15
Impulse Withstand Voltage4 kV isolating, 6 kV IEC 947-1
Positions2
Positive OpeningYes
Dimensions45 x 50 x 59 mm (W x H x D)
Handle Size35 mm
Electrical ConnectionCaptive screw clamp terminals flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
MaterialProtective Treatment: TC
StandardsIEC 60947-3, IEC 60947-5-1, CENELEC EN 50013, GB/T 14048.5, GB/T 14048.3
Overvoltage CategoryClass II IEC 536
Ambient Air Temperature for Storage-40 to 70 °C
Vibration Resistance5 gn 10-150 Hz IEC 68-2-6
Mercury FreeYes
China RoHS RegulationYes
