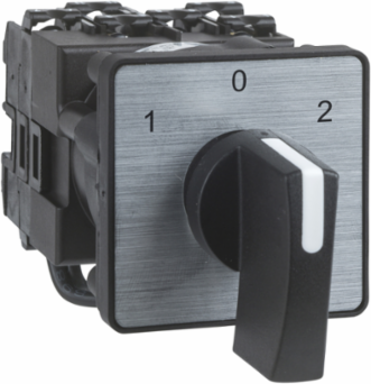

Schneider Electric K2E003WLH Cam changeover switch, Harmony K, multifixing, 3 Poles, position 0, 30°, 20A, black marked 1-0-2

Cam changeover switch, Harmony K, multifixing, 3 Poles, position 0, 30°, 20A, black marked 1-0-2
  • MPN: K2E003WLH
  • PPN: SCH-K2E003WLH

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$114.12/ EA

Description

Cam changeover switch, Harmony K, multifixing, 3 Poles, position 0, 30°, 20A, black marked 1-0-2

Specifications

Environment

Ambient Air Temperature For Operation
-25-55 °C
Shock Resistance
30 gn IEC 68-2-27
Standards
EN/IEC 60947-3 power circuit || EN/IEC 60947-5-1 control circuit || CENELEC EN 50013
Electrical Shock Protection Class
class II IEC 536 || class II NF C 20-030
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Product CertificationsCSA 240 V 3 hp 3 phases 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phases
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP071103EN_V1
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
China Rohs Regulation
X
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A

Complementary

Short-Circuit Protection
20 A cartridge fuse gG
[Uimp] Rated Impulse Withstand Voltage
4 kV in isolating function || 6 kV IEC 947-1
Electrical Durability
200000 cycles AC-23 || 200000 cycles AC-3 || 600000 cycles AC-15 || 600000 cycles AC-21
Short-Circuit Current
10000 A
Positive Opening
with
Mechanical Durability
1000000 cycles
[Ithe] Conventional Enclosed Thermal Current16 A
Electrical Connectioncaptive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
Maximum Operating Rate2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1
Contact Operationslow-break

Specifications

Range Of Product
Harmony K
Presentation Of Legend
with metallic, 1 - 0 - 2 black
Product Or Component Type
complete cam switch
Cam Switch Function
changeover switch
Switching Positions
0-45°-315°
Off Position
with Off position
Fixing Modemultifixing
Ip Degree Of ProtectionIP40 conforming to IEC 529
[Ith] Conventional Free Air Thermal Current20 A
Component NameK2
Product Mountingfront mounting
