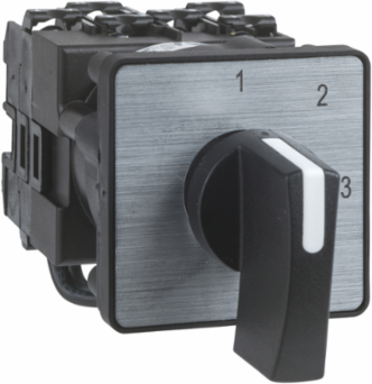

Schneider Electric K2B001ULH Harmony K Cam Changeover Switch 1 Pole 20A 45x45mm with Handle
- MPN: K2B001ULH
- PPN: SCH-K2B001ULH
CAD
$51.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric K2B001ULH Harmony K Cam Changeover Switch is expertly designed for reliable operation in various automation and control applications. Featuring a single pole configuration rated for 20A, this switch offers robust performance within a compact 45x45mm design, making it an ideal choice for environments where space is at a premium. Its user-friendly handle allows for easy operation, ensuring efficient control in switchgear and machinery. This cam switch embodies the durability and precision that Schneider Electric is known for, making it a valuable addition to your system's control interface.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Short-Circuit Current
- 10000 A
- Electrical Durability
- 200000 cycles AC-23, 200000 cycles AC-3, 600000 cycles AC-15, 600000 cycles AC-21
- Rated Insulation Voltage
- 690 V IEC 60947-1
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Positive Opening
- with
- Switching Positions
- left: 0° - 315°, right: 0° - 45°
- Product Mounting
- front mounting
- Type of Operator
- black handle 35 mm
- Net Weight
- 0.115 kg
- Standards
- IEC 60947-3 power circuit, IEC 60947-5-1 control circuit, CENELEC EN 50013
- IP Degree of Protection
- IP40 conforming to IEC 60529
- Ambient Air Temperature for Operation
- -25 to 55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Cam Switch Function
- changeover switch
- Off Position
- with Off position
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of SVHC above threshold
- Rohs Exemption Information
- Yes
- Weee
- EU waste collection compliant
- Sustainable Offer Status
- Green Premium product
- Component Name
- K2
- Presentation Of Legend
- metallic, 2 - 0 - 1 black
- Return
- without
Conventional Enclosed Thermal Current16 A
Maximum Operating Rate2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 8.333 cyc/mn AC-15
Poles1P
Rated Impulse Withstand Voltage4 kV isolating function, 6 kV IEC 947-1
Contact Operationslow-break
Switching Angle45°
Size45 x 45 x 77 mm
Fixing Modemultifixing
Electrical Connectioncaptive screw clamp terminals, flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
MaterialTC protective treatment
Product CertificationsCSA, UL
Electrical Shock Protection ClassClass II IEC 536
Ambient Air Temperature for Storage-40 to 70 °C
Vibration Resistance5 gn 10-150 Hz IEC 68-2-6
Cam Switch Head Typewith front plate 45 x 45 mm
Rotary Handle Padlockingwithout
Mercury FreeYes
Environmental DisclosureENVPEP071103EN_V1
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (out of EU RoHS legal scope)
Range of ProductHarmony K
Circularity ProfileN/A
Warranty18 months
