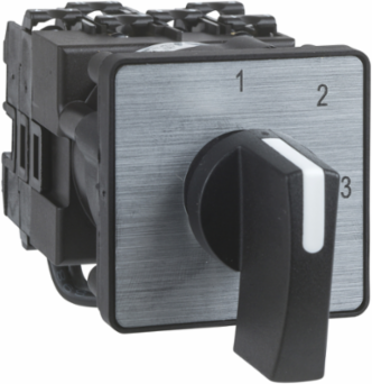

Schneider Electric K2H004ULH Harmony K Cam Changeover Switch, 4 Poles, 20A, 45x45mm
- MPN: K2H004ULH
- PPN: SCH-K2H004ULH
CAD
$117.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This cam changeover switch from Schneider Electric, designated as the K2H004ULH model, is engineered for versatility and reliability in automation and control applications. Featuring four poles and a robust current handling capacity of 20A, it is designed to support a variety of configurations and switching needs. The compact 45x45mm form factor allows for easy integration into control panels, making it an ideal solution for environments that demand efficient switching operations. With its durable construction, this switch ensures consistent performance and longevity, making it a valuable addition for professionals seeking dependable control components.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Rated Insulation Voltage
- 690 V IEC 60947-1
- Poles
- 4P
- Contact Operation
- Slow-break
- Maximum Operating Rate
- 2.5 cyc/min AC-21, AC-23, AC-3; 8.333 cyc/min AC-15
- Mechanical Durability
- 1,000,000 cycles
- Dimensions
- 45 x 45 x 107 mm (W x H x D)
- Fixing Mode
- Multifixing
- Handle Color
- Black
- IP Degree of Protection
- IP40 IEC 60529
- Shock Resistance
- 30 gn IEC 68-2-27
- Protective Treatment
- TC
- Standards
- IEC 60947-3 power circuit, IEC 60947-5-1 control circuit, CENELEC EN 50013
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
Conventional Enclosed Thermal Current16 A
Short-Circuit Current10000 A
Rated Impulse Withstand Voltage4 kV isolating function, 6 kV IEC 947-1
Switch FunctionChangeover switch
Positive OpeningYes
Electrical Durability200000 cycles AC-23, AC-3; 600000 cycles AC-15, AC-21
Switching Angle45°
Mounting TypeFront mounting
Handle Size35 mm
Electrical ConnectionCaptive screw clamp terminals, flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
Electrical Shock Protection ClassClass II IEC 536
Vibration Resistance5 gn 10-150 Hz IEC 68-2-6
Product CertificationsCSA 240 V, UL 240 V
Ambient Air Temperature for Operation-25 to 55 °C (-13 to 131 °F)
Net Weight0.195 kg
