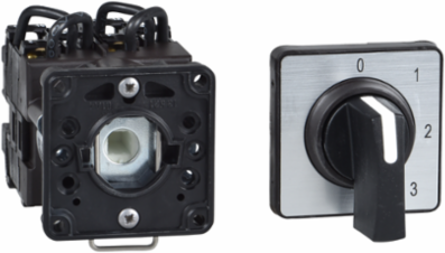

Schneider Electric K2H004UCH Harmony K Cam Changeover Switch, Ø 22mm, 4 Poles, 20A, 45x45mm, IP65
- MPN: K2H004UCH
- PPN: SCH-K2H004UCH
CAD
$137.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The K2H004UCH Harmony K Cam Changeover Switch from Schneider Electric exemplifies robust engineering tailored for automation and control applications. Designed with a diameter of 22mm and a compact 45x45mm frame, this switch features four poles and a current rating of 20A, ensuring reliable operation in various scenarios. With an IP65 rating, it provides excellent protection against dust and water ingress, making it suitable for demanding environments. Whether used for industrial automation or control tasks, this cam switch stands out for its durability and performance.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Conventional Free Air Thermal Current
- 20 A
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Impulse Withstand Voltage
- 4 kV isolating function, 6 kV IEC 947-1
- Electrical Durability
- 200000 cycles AC-23, AC-3; 600000 cycles AC-15, AC-21
- Switching Angle
- 45°
- Diameter
- 22 mm
- Handle Length
- 35 mm
- Electrical Connection
- Captive screw clamp terminals flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
- Vibration Resistance
- 5 gn 10-150 Hz IEC 68-2-6
- Cad Overall Height
- 50 mm
- Cad Overall Depth
- 79 mm
- Product Mounting
- Front mounting
- Contact Operation
- Slow-break
- Type Of Operator
- Black handle 35 mm
- Cam Switch Head Type
- With front plate 45 x 45 mm
- Positive Opening
- With
- Ip Degree Of Protection
- IP65 IEC 60529
- Product Certifications
- CSA, UL
- Eu Rohs Directive
- Pro-active compliance
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- EU disposal compliant
- Ambient Air Temperature For Storage
- -40 to 70 °C
- Range Of Product
- Harmony K
Conventional Enclosed Thermal Current16 A
Short-Circuit Current10000 A
Rated Insulation Voltage690 V IEC 60947-1
Maximum Operating Rate2.5 cyc/mn AC-21, AC-23, AC-3; 8.333 cyc/mn AC-15
Switching PositionsRight: 0° - 45°; Left: 0° - 315°
Poles4P
Frame Size45 x 45 mm with front plate
Handle ColorBlack
Shock Resistance30 gn IEC 68-2-27
Electrical Shock Protection ClassClass II IEC 536
Cad Overall Width45 mm
Net Weight0.215 kg
Fixing ModeØ 22 mm hole
Product Or Component TypeComplete cam switch
Cam Switch FunctionChangeover switch
Off PositionWith Off position
Rotary Handle PadlockingWithout
StandardsIEC 60947-3 power circuit, IEC 60947-5-1 control circuit, CENELEC EN 50013
Rohs Exemption InformationYes
China Rohs RegulationX
Mercury FreeYes
Reach RegulationFree of SVHC above threshold
Environmental DisclosureENVPEP071103EN_V1
Ambient Air Temperature For Operation-25 to 55 °C
Warranty18 months
Component NameK2
