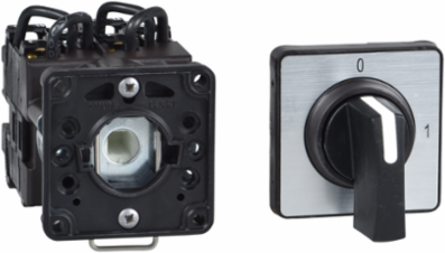

Schneider Electric K2C003HCH Harmony K Cam Switch, 3 Poles, 2 Positions, 20A, 45x45mm, IP65
- MPN: K2C003HCH
- PPN: SCH-K2C003HCH
CAD
$73.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Equipped with a robust design, the Harmony K Cam Switch from Schneider Electric is engineered to offer reliable performance in various automation and control applications. This switch features three poles and two positions, making it versatile for different configurations while accommodating a current rating of 20A. Its compact 45x45mm size ensures it can fit seamlessly into control panels, while the IP65 rating provides essential protection against dust and moisture, making it suitable for demanding environments. Ideal for those looking to enhance their electrical control systems, this cam switch combines functionality with durability and aesthetic appeal.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Rated Insulation Voltage
- 690 V IEC 60947-1
- Mechanical Durability
- 1,000,000 cycles
- Maximum Operating Rate
- 2.5 cyc/min AC-21, 2.5 cyc/min AC-23, 2.5 cyc/min AC-3, 8.333 cyc/min AC-15
- Poles
- 3P
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Positive Opening
- yes
- Overvoltage Category
- Class II IEC 536, Class II NF C 20-030
- Mounting Hole Diameter
- 22 mm
- Handle Size
- 35 mm
- Overall Height
- 50 mm
- Overall Depth
- 59 mm
- Protection Treatment
- TC
- Vibration Resistance
- 5 gn 10-150 Hz IEC 68-2-6
- Operating Temperature Range
- -25 to 55 °C
- Certifications
- CSA, UL, CCC
- Legend Presentation
- metallic, marked 0/1 black
- Warranty
- 18 months
- EU RoHS Directive
- Pro-active compliance (out of EU RoHS legal scope)
- Mercury Free
- yes
- Range Of Product
- Harmony K
- Mounting Location
- front
Short-Circuit Current10000 A
Conventional Enclosed Thermal Current16 A
Electrical Durability200,000 cycles AC-23, 200,000 cycles AC-3, 600,000 cycles AC-15, 600,000 cycles AC-21
Switching Angle90°
Positionsright: 0° - 90°
Contact Operationslow-break
Voltage690 V IEC 60947-1
Fixing ModeØ 22 mm hole
Size45 x 45 mm
Handle Colorblack
Overall Width45 mm
Electrical Connectioncaptive screw clamp terminals flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
IP RatingIP65 IEC 60529
Shock Resistance30 gn IEC 68-2-27
Storage Temperature Range-40 to 70 °C
StandardsIEC 60947-3, IEC 60947-5-1, CENELEC EN 50013, GB/T 14048.5, GB/T 14048.3
Sustainable Offer StatusGreen Premium product
Reach Free Of Svhcyes
RoHS Exemption Informationyes
Toxic Heavy Metal Freeyes
BrandK2
