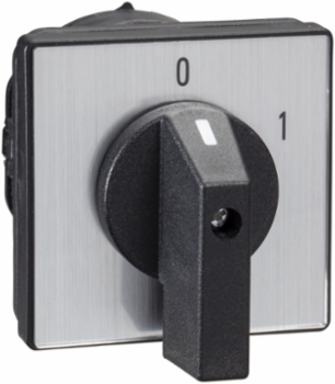

Schneider Electric K30C003HP Cam switch, Harmony K, front mounting, plastic, 3 poles, 2postions, 90°, 32A, 64x64mm, marked OFF/ON
Schneider Electric K30C003HP Cam switch, Harmony K, front mounting, plastic, 3 poles, 2postions, 90°, 32A, 64x64mm, marked OFF/ON
- MPN: K30C003HP
- PPN: SCH-K30C003HP
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$140.09/ EA
Description
Cam switch, Harmony K, front mounting, plastic, 3 poles, 2postions, 90°, 32A, 64x64mm, marked OFF/ON
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Electrical Shock Protection Class
- class II IEC 60536 || class II NF C 20-030
- Protective Treatment
- TC
Ambient Air Temperature For Storage-40-70 °C
Product CertificationscULus 120 V 2 hp 1 phase || cULus 240 V 5 hp 1 phase || cULus 240 V 5 hp 3 phases || cULus 480 V 20 hp 3 phases
StandardsIEC 60947-3
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Complementary
- Electrical Connection
- captive screw clamp terminals flexible 2 x 4 mm² || captive screw clamp terminals solid 2 x 6 mm²
- Short-Circuit Protection
- 50 A cartridge fuse gG
- Positive Opening
- with
- Contact Operation
- slow-break
- Switching Capacity In Ma
- 11000 mA DC 120 V 2 inductive 50 ms) || 11000 mA DC 180 V 3 inductive 50 ms) || 11000 mA DC 60 V 1 inductive 50 ms) || 1200 mA DC 220 V 1 resistive 1 ms) || 1200 mA DC 440 V 2 resistive 1 ms) || 1200 mA DC 660 V 3 resistive 1 ms) || 16000 mA DC 140 V 3 inductive 50 ms) || 16000 mA DC 48 V 1 inductive 50 ms) || 16000 mA DC 95 V 2 inductive 50 ms) || 23000 mA DC 120 V 2 resistive 1 ms) || 23000 mA DC 180 V 3 resistive 1 ms) || 23000 mA DC 60 V 1 resistive 1 ms) || 25000 mA DC 30 V 1 inductive 50 ms) || 25000 mA DC 60 V 2 inductive 50 ms) || 25000 mA DC 90 V 3 inductive 50 ms) || 3200 mA DC 110 V 1 inductive 50 ms) || 3200 mA DC 220 V 2 inductive 50 ms) || 3200 mA DC 330 V 3 inductive 50 ms) || 32000 mA DC 140 V 3 resistive 1 ms) || 32000 mA DC 24 V 1 inductive 50 ms) || 32000 mA DC 24 V 1 resistive 1 ms) || 32000 mA DC 48 V 1 resistive 1 ms) || 32000 mA DC 48 V 2 inductive 50 ms) || 32000 mA DC 48 V 2 resistive 1 ms) || 32000 mA DC 70 V 3 inductive 50 ms) || 32000 mA DC 70 V 3 resistive 1 ms) || 32000 mA DC 95 V 2 resistive 1 ms) || 400 mA DC 440 V 1 resistive 1 ms) || 400 mA DC 660 V 2 resistive 1 ms) || 6500 mA DC 110 V 1 resistive 1 ms) || 6500 mA DC 220 V 2 resistive 1 ms) || 6500 mA DC 330 V 3 resistive 1 ms)
- Cad Overall Depth
- 93 mm
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 947-1 || 6 kV IEC 947-1
- Switching Angle
- 90 °
Short-Circuit Current5000 A
[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1
Tightening Torque1.2 N.m
Mechanical Durability300000 cycles
Cad Overall Width64 mm
Net Weight0.224 kg
Cad Overall Height64 mm
Specifications
- Switching Positions
- right: 0° - 90°
- Cam Switch Head Type
- with front plate 64 x 64 mm
- Product Mounting
- front mounting
- Poles Description
- 3P
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Product Or Component Type
- complete cam switch
- Cam Switch Function
- switch
- Type Of Operator
- black handle
Range Of ProductHarmony K
Fixing Mode4 holes
Presentation Of Legendwith metallic, OFF-ON black
Rotary Handle Padlockingwithout
Returnwithout
[Ith] Conventional Free Air Thermal Current32 A
Component NameK30
Off Positionwith Off position
