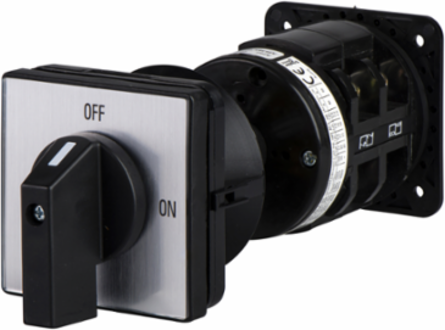

Schneider Electric K50C003HP Complete cam switch, Harmony K1, K2, cam switch, front mounting, plastic, 3 poles, 2 positions, 90degrees, 50A, 64x64mm, marked OFF ON
Schneider Electric K50C003HP Complete cam switch, Harmony K1, K2, cam switch, front mounting, plastic, 3 poles, 2 positions, 90degrees, 50A, 64x64mm, marked OFF ON
- MPN: K50C003HP
- PPN: SCH-K50C003HP
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$207.06/ EA
Description
Complete cam switch, Harmony K1, K2, cam switch, front mounting, plastic, 3 poles, 2 positions, 90degrees, 50A, 64x64mm, marked OFF ON
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Standards
- IEC 60947-3
- Electrical Shock Protection Class
- class II IEC 60536 || class II NF C 20-030
Product CertificationscULus 120 V 3 hp 1 phase || cULus 480 V 25 hp 3 phases || cULus 240 V 7.5 hp 1 phase || cULus 240 V 7.5 hp 3 phases
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Short-Circuit Protection
- 63 A cartridge fuse gG
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 947-1 || 6 kV IEC 947-1
- Switching Angle
- 90 °
- Short-Circuit Current
- 5000 A
- Positive Opening
- with
- Contact Operation
- slow-break
- Switching Capacity In Ma
- 15000 mA DC 120 V 2 inductive 50 ms) || 15000 mA DC 180 V 3 inductive 50 ms) || 15000 mA DC 60 V 1 inductive 50 ms) || 20000 mA DC 140 V 3 inductive 50 ms) || 20000 mA DC 48 V 1 inductive 50 ms) || 20000 mA DC 95 V 2 inductive 50 ms) || 30000 mA DC 30 V 1 inductive 50 ms) || 30000 mA DC 60 V 2 inductive 50 ms) || 30000 mA DC 90 V 3 inductive 50 ms) || 3500 mA DC 110 V 1 inductive 50 ms) || 3500 mA DC 220 V 2 inductive 50 ms) || 3500 mA DC 330 V 3 inductive 50 ms) || 37000 mA DC 120 V 2 resistive 1 ms) || 37000 mA DC 180 V 3 resistive 1 ms) || 37000 mA DC 60 V 1 resistive 1 ms) || 40000 mA DC 140 V 3 resistive 1 ms) || 40000 mA DC 24 V 1 inductive 50 ms) || 40000 mA DC 48 V 1 resistive 1 ms) || 40000 mA DC 48 V 2 inductive 50 ms) || 40000 mA DC 70 V 3 inductive 50 ms) || 40000 mA DC 95 V 2 resistive 1 ms) || 50000 mA DC 24 V 1 resistive 1 ms) || 50000 mA DC 48 V 2 resistive 1 ms) || 50000 mA DC 70 V 3 resistive 1 ms)
- Cad Overall Depth
- 103 mm
Net Weight0.275 kg
Cad Overall Height64 mm
Electrical Connectioncaptive screw clamp terminals flexible 2 x 6 mm² || captive screw clamp terminals solid 2 x 10 mm²
[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1
Tightening Torque2 N.m
Mechanical Durability300000 cycles
Cad Overall Width64 mm
Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, OFF-ON black
- Product Or Component Type
- complete cam switch
- Cam Switch Function
- switch
- Type Of Operator
- black handle
- Cam Switch Head Type
- with front plate 64 x 64 mm
- Poles Description
- 3P
- Return
- without
Fixing Mode4 holes
Ip Degree Of ProtectionIP40 conforming to IEC 60529
[Ith] Conventional Free Air Thermal Current50 A
Component NameK50
Switching Positionsright: 0° - 90°
Product Mountingfront mounting
Rotary Handle Padlockingwithout
Off Positionwith Off position
