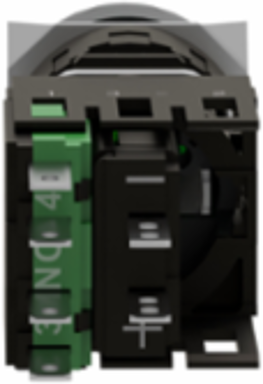

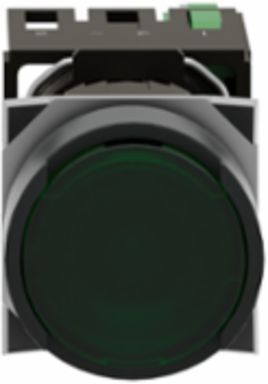

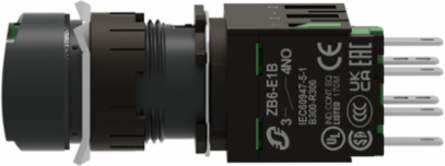

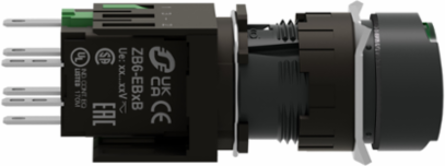

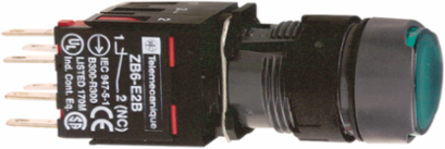

Schneider Electric XB6AW3B1B Complete Illuminated Push Button, 16mm, Green, 12-24V AC/DC, 1 NO

  • MPN: XB6AW3B1B
  • PPN: SCH-XB6AW3B1B

CAD

$51.26

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This illuminated push button from Schneider Electric brings functionality and reliability to your automation and control projects. With a compact 16mm design, it features a vibrant green illumination that not only enhances visibility but also provides a clear indicator for operation. Operating at a versatile voltage range of 12-24V AC/DC, this button is equipped with one normally open (NO) contact, making it suitable for a variety of applications in control systems. Ideal for those seeking efficient control at their fingertips, this push button integrates seamlessly into your setup, ensuring both performance and ease of use.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, France, Mexico

Physical Attributes

Cad Overall Depth
57 mm
Cad Overall Width
18 mm
Cad Overall Height18 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Electrical Durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Certificate Agency
CSA, UL, CCC, GOST
Carbon Footprint Of The Distribution Phase [A4]
0.0019614882, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0016910959, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
14 kg CO2 eq., 14.0789142857
Local Publishable Date
2026-01-12
Stocking Flag
N
Service Catalog Item
Finished good
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Bulb Base
integral LED
Contact Operation
slow-break
Contacts Type And Composition
1 NO
Device Short Name
XB6
Electrical Shock Protection Class
class II conforming to IEC 61140
Light Source
LED
Operating Force
3.5 N NO changing electrical state
Operating Travel
1 mm NO changing electrical state)3.5 mm total travel)
Positive Opening
with IEC 60947-5-1 appendix K
Product Or Component Type
complete illuminated push-button
Range Of Product
Harmony XB6
Resistance To Electrostatic Discharge
6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Returnability
Yes
Shape Of Signaling Unit Head
round
Signalling Type
steady
Supply Voltage Limits
6-30 V AC/DC
Total Lifecycle Carbon Footprint
14 kg CO2 eq.
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Harmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
Functional-unit Unit
Unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential In %
17
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
[Us] Rated Supply Voltage
12...24 V AC/DC
Short-circuit Protection
6 A cartridge fuse gG
Package Weight(Lbs)
20.000 g
Warranty (In Months)
18
Customs Code
8536509031
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Vibration Resistance+/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0272148194
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.3350902864
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2403025EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialplastic
Compatibility CodeXB6
Contacts Materialsilver alloy (Ag/Ni)
Current Consumption15 mA
Electrical Reliabilityλ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Electromagnetic Emissionclass B IEC 55011
Mounting Diameter16 mm
Operating Positionany position
Operator Profilegreen flush, unmarked
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Software Versionv5.9.4
Sustainable PackagingNo
Type Of Operatorspring return
Pep CodeENVPEP2403025EN
Pep Verification Date2023-10-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Ie] Rated Operational Current3 A 120 V, AC-15, B300 IEC 60947-5-11.5 A 240 V, AC-15, B300 IEC 60947-5-10.1 A 250 V, DC-13, R300 IEC 60947-5-10.22 A 125 V, DC-13, R300 IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Connections - TerminalsFaston connectors 2.8 x 0.5 mm
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]14.0692

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Nema Degree Of Protection
NEMA 4 CSA C22.2 No 94NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Circularity Profile
ENVEOLI2403025EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-10-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint14.4448719756
Environmental DisclosureENVPEP2403025EN
Ip Degree Of ProtectionIP65 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2403025EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
complete illuminated push-button
Range Of ProductHarmony XB6

ETIM

ETIM 8
EC001028
ETIM 9EC001028

Surge Protection And Filtering Attributes

Surge Withstand
1 kV direct contact IEC 61000-4-52 kV in free air IEC 61000-4-5

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
