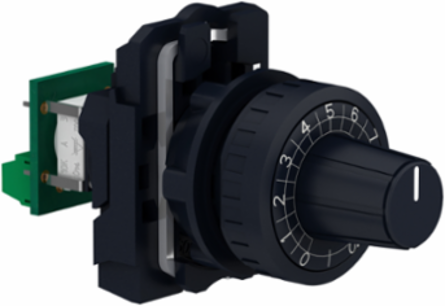

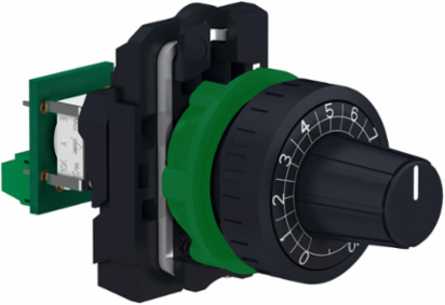

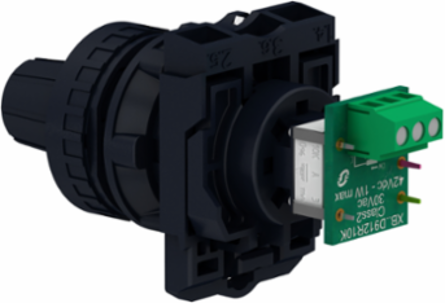

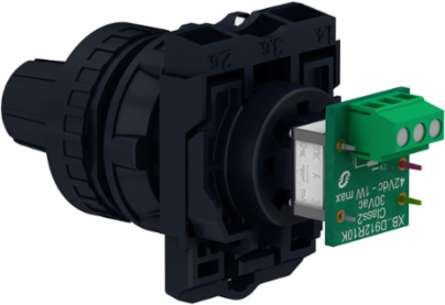

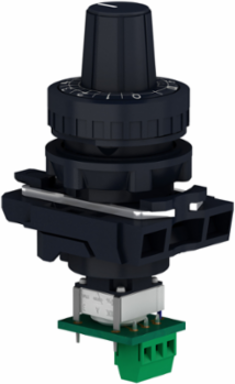

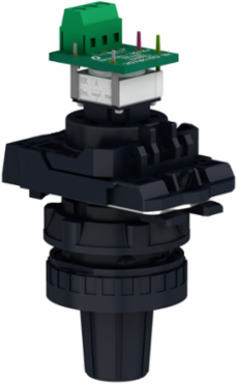

Schneider Electric XB5AD912R4K7 Harmony XB5 Potentiometer 22mm 4.7k IP66
- MPN: XB5AD912R4K7
- PPN: SCH-XB5AD912R4K7
CAD
$42.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5, 22mm diameter potentiometer has a resistance of 4.7kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States

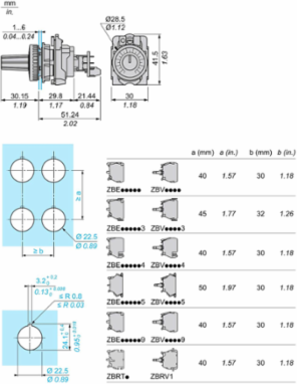

Physical Attributes
- Cad Overall Depth
- 82 mm
- Cad Overall Width
- 30 mm
Cad Overall Height42 mm
Color Of Markingwhite
Complementary Attributes
- Rated Power In W
- 1 W 70 °C
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- [Us] Rated Supply Voltage
- <= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC<= 30 V AC, <= 30 V AC, <= 42 V DC, <= 42 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.11017684594348223
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.6 kg CO2 eq., 0.5590337283500456
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 33.61
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2248
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 16 %
- Bezel Material
- dark grey plastic
- Device Short Name
- XB5
- Group Of Product
- potentiometer knurled knob
- Main Group
- potentiometer
- Mechanical Durability
- 50000 cycles
- Ohmic Value
- 4700 Ohm
- Potentiometer Characteristic
- linear
- Product Or Component Type
- potentiometer
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2312041EN
- Pep Verification Date
- 2024-06-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Package Weight(Lbs)
- 58.000 g
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 11.033
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 13.055
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 11.033
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Precision Of Internal Conversion Resistor+-10%, +-10%
Certificate AgencyBV, CSA, UL Listed
Carbon Footprint Of The Distribution Phase [A4]0.006276754785779399, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.012486235186873291, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.5 kg CO2 eq., 0.46984
Local Publishable Date2026-03-26
Future Imap25.96
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2312041EN
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content27 %
Compatibility CodeXB5
Electrical Shock Protection Classclass II conforming to IEC 60536
Head Typestandard
Materialcermet
Mounting Diameter22 mm
Operator Profileknurled knob, with white)
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingNo
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Color Of Markingwhite
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionPotentiometer is used to precise control and adjustment of machines in industrial applications. Potentiometers provide a particularly easy way to control speed or configure general settings such as temperature.It is made up of metal bezel and It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.This product will be in active mode at 70% with power consumption of 0.017 W with life span of 10 years and adhering to IEC 60947-1 standards.
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]5.4273
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]2.0211
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.0211
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Nema Degree Of Protection
- NEMA 13, NEMA 4X, UL type 4X/13
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Carbon Footprint
- 1.1578135642661804
- Environmental Disclosure
- ENVPEP2312041EN
- Ip Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312041EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level16 %
Mercury FreeYes
Circularity ProfileENVEOLI2312041EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilityØ 6 mm shaft
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- potentiometer
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001027
ETIM 9EC001027
Overview Attributes
- Device Presentation
- complete product
